Aero Precision M5 16.6" Enhanced M-LOK Handguard - Gen 2

Manufactured by Aero Precision
SKU: APRA308233C
MPN: APRA308233C
Manufactured by Aero Precision
4 Reviews
$204.99

In Stock

Non-FFL orders placed before 3:30pm CST will ship same business day. Non-FFL orders placed after 3:30pm CST will be shipped the next business day. FFL orders will ship within 3 business days once transfer details are provided.

For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details

Details

Details

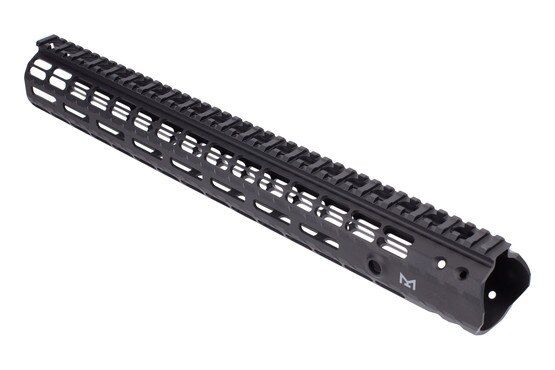

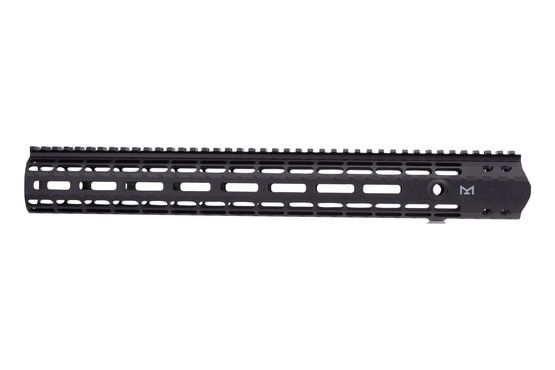

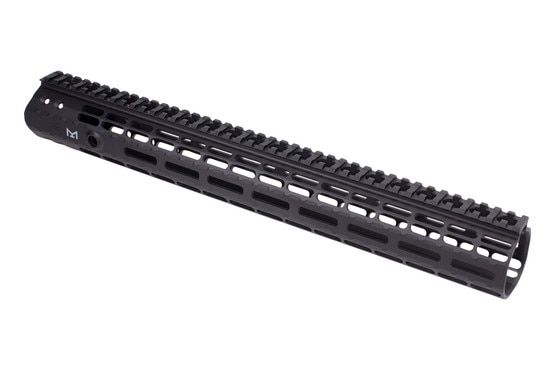

Eliminate bulk on your new M5 .308 build with the Gen 2 16.6" enhanced M-LOK handguard from Aero Precision. These lightweight 16.6" handguards feature 6061-T6 aluminum construction with a one-piece free float design and M-LOK slots for adding your favorite accessories. The enhanced models are machined to mil-spec dimensions and come standard with built-in anti-rotation tabs and scalloped rails. The 2nd generation model includes upgrades like QD sling sockets at the 3, 6, and 9 o'clock positions, milling along the flats for visual appeal and improved grip, and a new profile for the continuous Picatinny rail. These enhanced handguards reduce bulk while providing strength and stability and are ready to attach to an enhanced upper.

Features:
  • Compatible with Aero Precision enhanced uppers
  • 16.6" one-piece free float handguard
  • M-LOK attachment points
  • 6061-T6 aluminum construction
  • Built-in anti-rotation tabs
  • Scalloped rails
  • 1.72" inside diameter
  • 1.78" inside diameter of barrel nut cut area
  • Compatible with low-profile gas blocks
  • DMPS high profile
  • QD sling socket at 3, 6, and 9 o'clock positions
  • Milling along flats to aid with grip
  • New profile for continuous Picatinny top rail
  • Handguard screw torque - 25 ins-lbs
See More
Back

Specifications

Accessory AttachmentM-LOK
BrandAero Precision
ColorBlack
Compatible ModelDPMS High Profile Receivers
FinishHardcoat Anodized
Handguard Length16.6
Inner Diameter1.72
MaterialAluminum - 6061-T6
California Prop 65 warning

 WARNING: This product can expose you to chemicals, which are known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

YOU MAY ALSO BE INTERESTED IN THESE PRODUCTS

Back

Ratings & Reviews

4 reviews

3.5
Write a Review

Excellent feel and strength with m5e1 upper.

by

The enhanced handguard goes with enhanced upper. Or you can use a BAR barrel nut I understand but I will never do this. I love the m5e1 enhanced upper that this goes with. The handhard bolts on the the enhanced upper. The barrel not comes with the m5e1 upper and cones with the wrench. Of corse there is no barrel nut with this handguard. The barrel nut goes on the m5e1 upper called the enhanced upper. This is obvious. Other people use the BAR system which in which the handgaued attaches to the barrel nut when you use a milspec threaded upper but personally I prefer the m5e1 enhanced upper.

Was this review helpful?

totally worthless.

by -

didn't come with barrel nut, returned for a refund. zero star review

Was this review helpful?

I have several of these and they are great

by -

I installed this handguard on a 300 WSM AR10 with an KAK upper and and Aero lower assembled by me. I did have to relieve the upper end to clearance the KAK upper as the upper is a heavy duty magnum design. I did not have to remove very much material. And it came out fantastic. I am using a 24" long x .875" DeadShot Barrels barrel with a Lilja .875" Heartbreaker muzzle brake. This handguard fits well, covers the gas block with plenty of clearance and is sturdy enough to handle this configuration. I have another one on a 24" 22-250 which has an Aero upper and needed no fitting to assemble it onto the upper.

Was this review helpful?

Read this

by -

This handguard does not include the barrel nut. Don't buy it if you aren't buying the proprietary receiver.
