Criterion Barrels .223 Wylde AR-15 Barrel - Hybrid Profile - Mid-Length - Chrome Lined - 14.5"

Manufactured by Criterion Barrels Inc.
SKU: 15140-HY8
MPN: 15140-HY8
Manufactured by Criterion Barrels Inc.
(0) No Reviews yet

Out of Stock

For individual Officer, First Responder, and Military pricing please make sure you are logged in. Click here for details



Note: The National Firearms Act regulates the configurations of some firearms assembled with barrels under 16” long. Know the NFA laws in your state before purchasing this item.

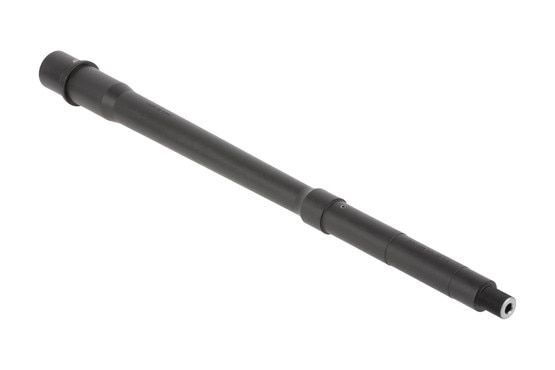

The Criterion AR-15 Hybrid barrel is designed for extreme accuracy without the added weight that a typical HBAR contour has. These barrels are chambered in .223 Wylde with a 1:8 button rifled twist rate to squeeze out every bit of accuracy possible. The chrome lining process makes the bore extremely hard to withstand the constant friction of a high-powered round passing through resulting in a long barrel life. The bore is then hand-lapped to make sure the lands and grooves are as smooth and consistent as possible to further ensure you are getting the most accuracy as possible. This 14.5 inch barrel is built with a mid-length gas system and an optimized gas port size to ensure reliable function with both 5.56 and .223 ammunition. If you are building a new AR-15 and accuracy and reliability are at the top of your checklist, then check out the Criterion Hybrid line of barrels.

  • 14.5” barrel with .223 Wylde chamber
  • Hybrid barrel contour
  • Chrome lined and hand lapped bore
  • 1:8 button rifled twist
  • Mid length gas system with .750” diameter
  • Dimpled beneath the gas port
  • Weight: 1.85 lbs

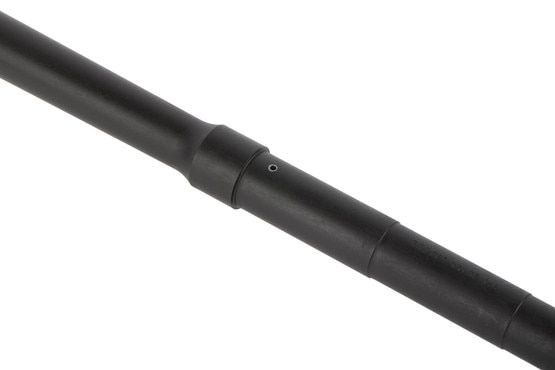

This Criterion AR-15 barrel also features a dimple beneath the gas port for set screw style gas blocks. This makes sure that the gas block is securely mounted and won’t move around while firing. This barrel is made from 4150 chrome moly vanadium steel and has a parkerized finish. This Criterion Hybrid barrel is built to withstand years of heavy use while providing exceptional accuracy.

Criterion Barrels are known for building high quality, precision AR-15 and AR-10 barrels as well as barrels for older firearms like the M1 Garand, M14, and Lee Enfield. Their barrels are used by the US Army Marksmanship Unit Action Shooting Team and the US Marine Corps Combat Shooting Team and are proven to win matches time and time again.
See More


Barrel CoatingParkerized
Barrel ContourHybrid
Barrel Length14.5
Barrel LiningChrome
Barrel Material41V50 Chrome Moly Vanadium Steel
BrandCriterion Barrels Inc.
Caliber Gauge.223 Wylde

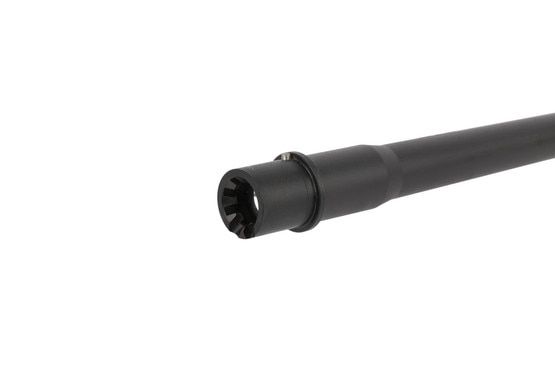

Feed RampsM4
Gas Seat Diameter.750
Gas System LengthMid-Length
Thread Pattern1/2 X 28
Twist Rate1:8
Weight1.85 lbs.
