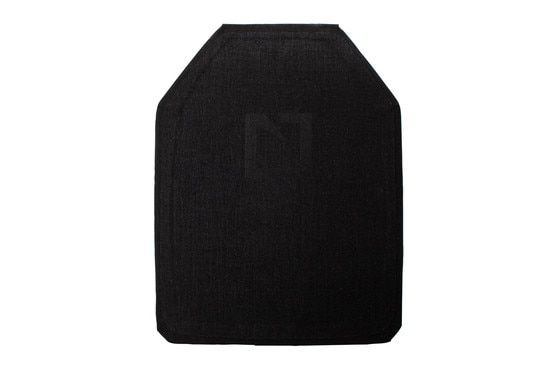

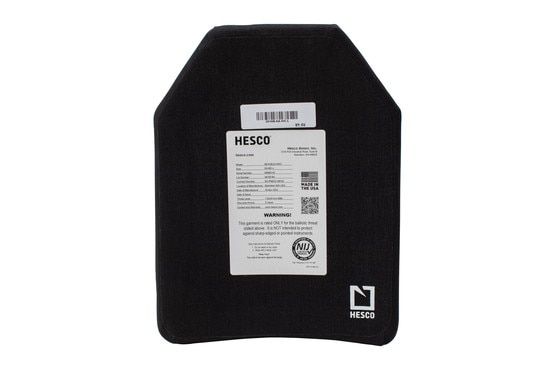

Hesco Armor 800 Series 3810B Ballistic Insert - Level III+ Multi Curve SAPI Cut - Large

The Hesco Armor 800 Series is a family of armor plates making extensive use of next-generation materials to achieve the lowest weight and maximum performance possible. Choose these plates for high-intensity scenarios requiring both protection and maneuverability.

Hesco 800 Series armor plates are made of Spectra®, a UHMWPE composite armor compound. Spectra® is 15 times stronger than steel and up to 40% stronger than similar aramid fibers on the market.

Features:

• 800 series armor
• Level III+ Armor
• Multi-curve Design

The 800 Series Model 3810B-SA-MC-L Ballistic Insert provides the wearer with a protection level termed “Level III+,” capable of stopping the following projectiles:

• All NIJ certified pistol-caliber threats (IIA, IIIA) up to .44 Magnum.
• All NIJ certified shotgun threats, including 00 buckshot and 1 oz. slugs.
• Standard NIJ certified Level III rifle caliber threats, including 7.62×39mm lead-core (M67, 6 hits) and 7.62×51mm NATO ball (M80, 6 hits).
• Specific “Level III+” rifle threats not typically covered by Level III NIJ armor, including 7.62×39mm steel-core (M43, 3 hits), 5.56×45mm lead core (M193, 6 hits), 5.56×45mm lead core with steel penetrator (M885, 6 hits), and 7.62×54mm R steel-core (LPS, 3 hits).

The Model 3810B armor plate is a neutrally buoyant version of the original Model 3810, neither sinking nor rising when fully immersed in water. This property is ideal for naval operations, allowing the wearer to remain adequately protected even when partially or fully submerged.

This plate fits Large plate carriers and features a multi-curved design with a SAPI cut, identical in profile as military-issue SAPI / ESAPI / XSAPI plates. Best used as frontal armor.
