L3Harris NGAL (Next Generation Aiming Laser) LA-23/PEQ - High Power - Tan - AGENCY ONLY

Manufactured by L3 Technologies
SKU: NGL-000-A1
MPN: NGL-000-A1
Manufactured by L3 Technologies
(0) No Reviews yet

Available for Pre Order/Back Order

For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details

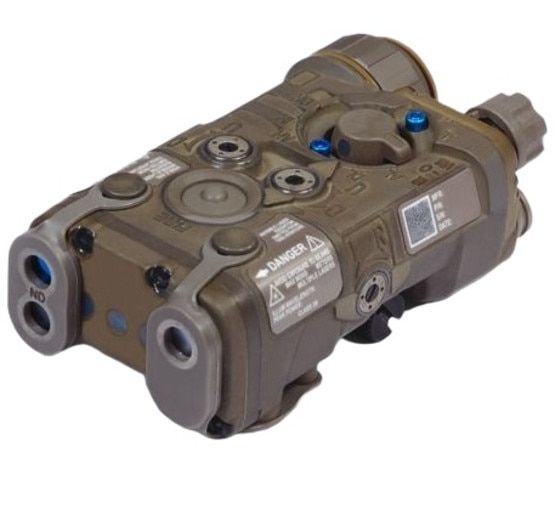

The L3Harris Next Generation Aiming Laser, or NGAL, is a lightweight, compact laser system designed to be compatible with a wide variety of night-vision devices (NVD). At 3.6” in length, 2” in width, and 1.25” in height, the NGAL has a comparable footprint to a common credit card, reducing required rail space on rifle platforms. Ultra-light, the NGAL weighs less than 5 oz. — the same as a handful of 5.56mm ammunition.

  • Compact design — the same footprint as a credit card
  • Lightweight — less than 5 oz.
  • Co-aligned visible and infrared (IR) lasers and IR illuminator
  • 3.5 hours of battery life in dual-high mode


IR Laser -
  • Safety: 1 (low) / 3B (high) - Output: .6mW (low) / 35mW (high)

Visible Laser -
  • Safety: 3R (low) / 3B (high) - Output:  4.5mW (low) / 80mW (high)

IR Illuminator
  • Safety: 3R (low) / 3B (high) - Output:  2.7mW (low) / 90mW (high)

An improved IR illuminator design increases situational awareness by enhancing the uniformity of the near-infrared (NIR) beam.

The NGAL uses co-aligned visible and infrared (IR) lasers and an IR illuminator. By using highly efficient electronics, L3Harris has minimized the weight and size requirements of the NGAL, ensuring increased performance and reduced bulk.

Powered by one DL123 or AA battery, the NGAL can remain functional for 3.5 hours in dual-high mode. As the Next Generation Aiming Laser is tan, it should blend into desert-like conditions easily.
See More


Battery TypeCR123A 3V Lithium or AA 1.5V
BrandL3 Technologies
ModesRed Laser, IR Illuminator, IR Laser
