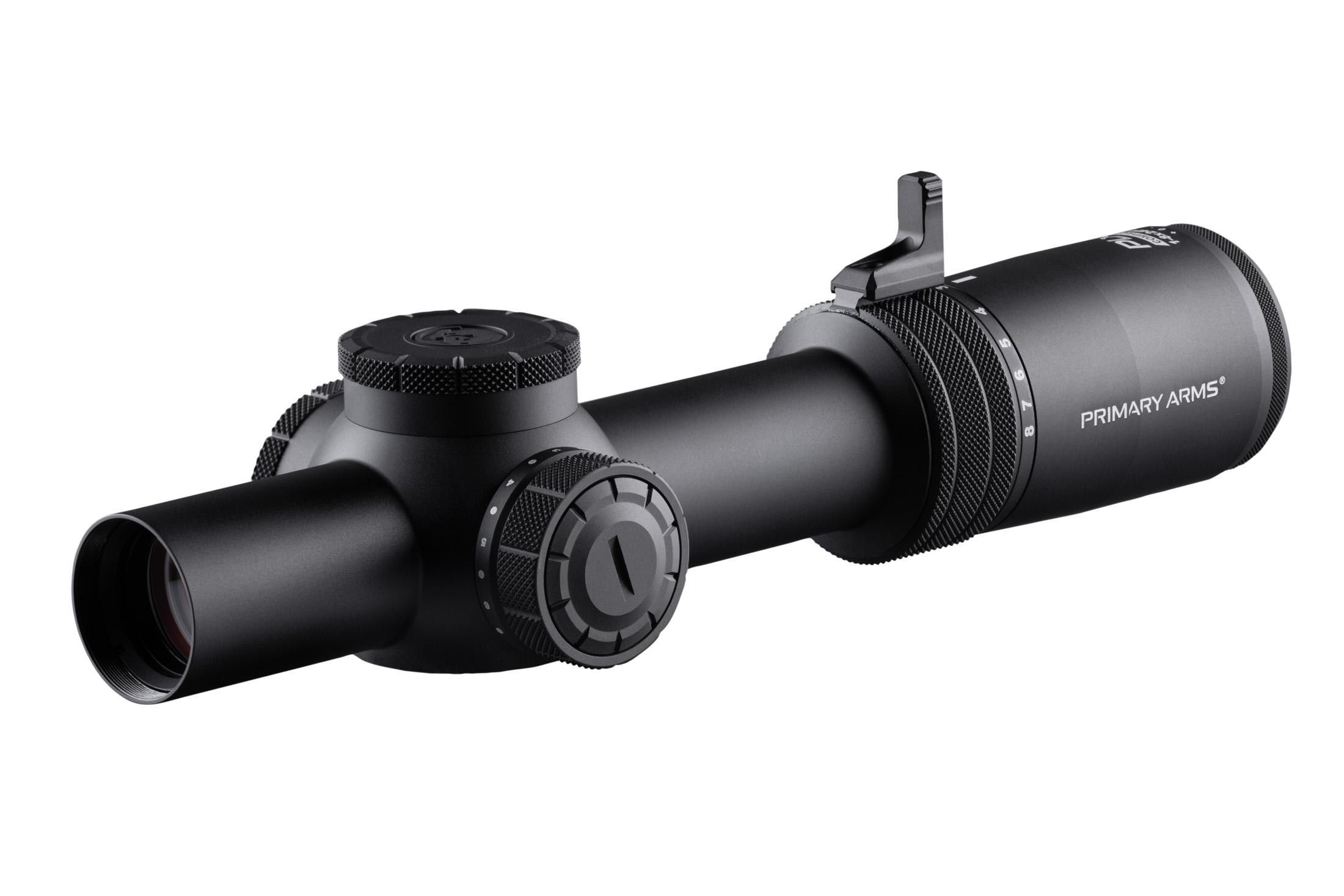

Primary Arms Compact PLxC 1-8x24 FFP Rifle Scope - Illuminated ACSS Raptor M8 Reticle - 5.56 / .308 - Yard

Manufactured by Primary Arms
SKU: PA-PLXC-1-8X24F-RAPTOR-5.56Y
MPN: 610150
Manufactured by Primary Arms
10 Reviews
$1,499.99

In Stock

Orders of non-FFL items will ship same day if ordered before 3:30pm CST (M-F). FFL orders will ship within 5 business days if transfer details are provided.

FREE
Shipping
Receive FREE shipping on your entire order when you purchase this item.
For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details

Details

Details

This rifle scope is part of the top tier optics line called PLx. PLx optics meet the exacting demands of professional use, offering impeccable glass clarity and advanced features from state-of-the-art production facilities.

Improving on its predecessor, the fully redesigned PLx 1-8x24mm FFP Compact Rifle Scope has a 9.28-inch OAL and weighs only 16.95 oz. It features premium-grade Japanese ED lenses for superior light transmission, color correctness, and image clarity. Combined with its ultra-wide field of view (121ft @ 100yd) and forgiving eye relief, this scope is capable of exceptional performance from close quarters to long-range.

Features:
  • Compact and Lightweight design
  • Premium grade Japanese ED glass with enhanced clarity and light transmission
  • First focal plane reticles stay true at every magnification
  • Ultra-Wide field of View
  • High strength 30mm tube
  • Easy to swap dovetail throw lever
  • User-configurable turrets
  • 1-8x magnification range is red dot fast in close quarters and accurate at medium range
  • AutoLive Motion-Sensing illumination technology
  • Adjustable illumination from Daylight bright to night vision compatible
  • Water proof, shock resistant, and fog resistant
  • ACSS Raptor M8 Yards reticle for rapid close quarters engagement and fast hits out to 800 yards
  • Durable hardcoat anodized black finish
  • Made in Japan
  • Protected by a lifetime warranty

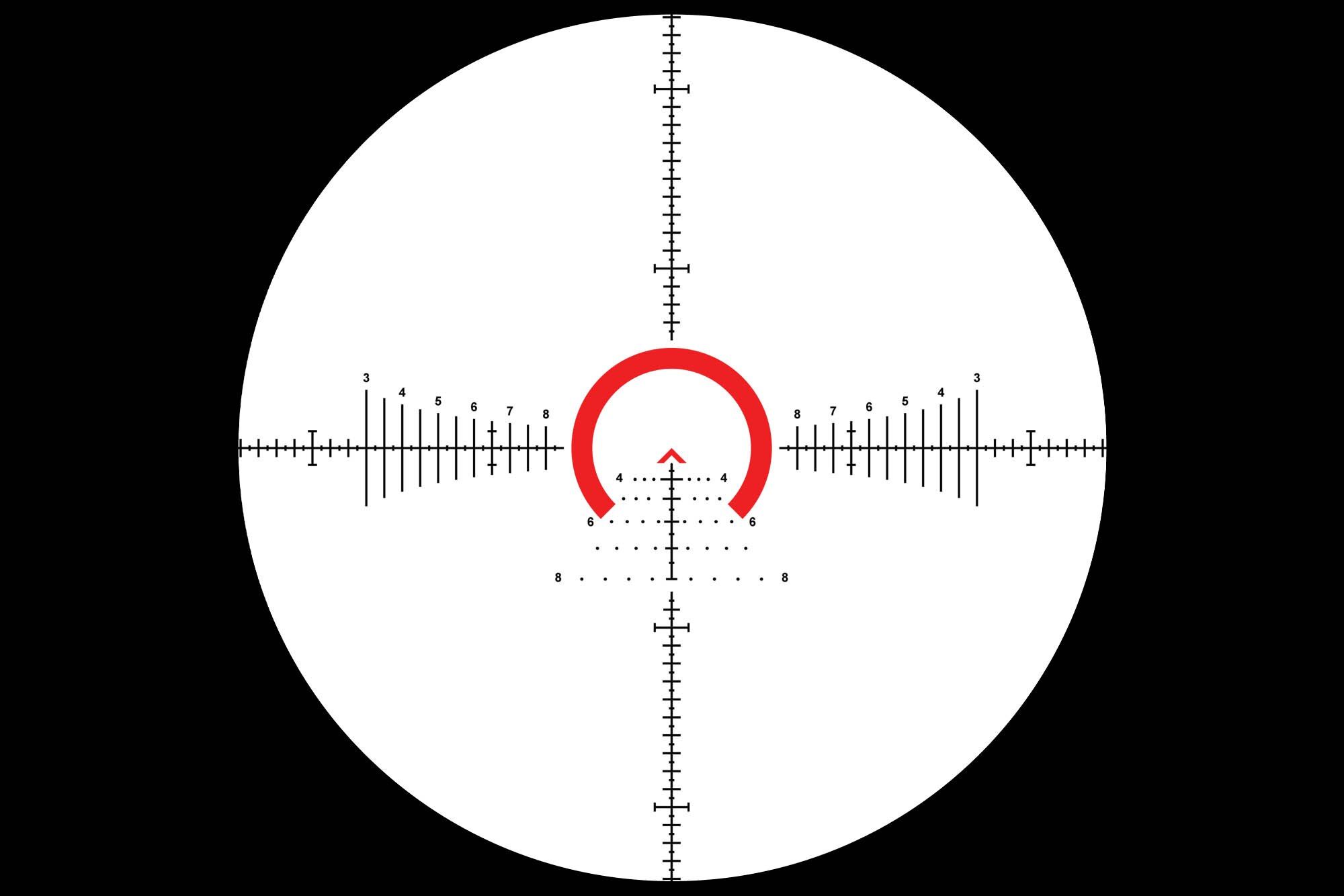

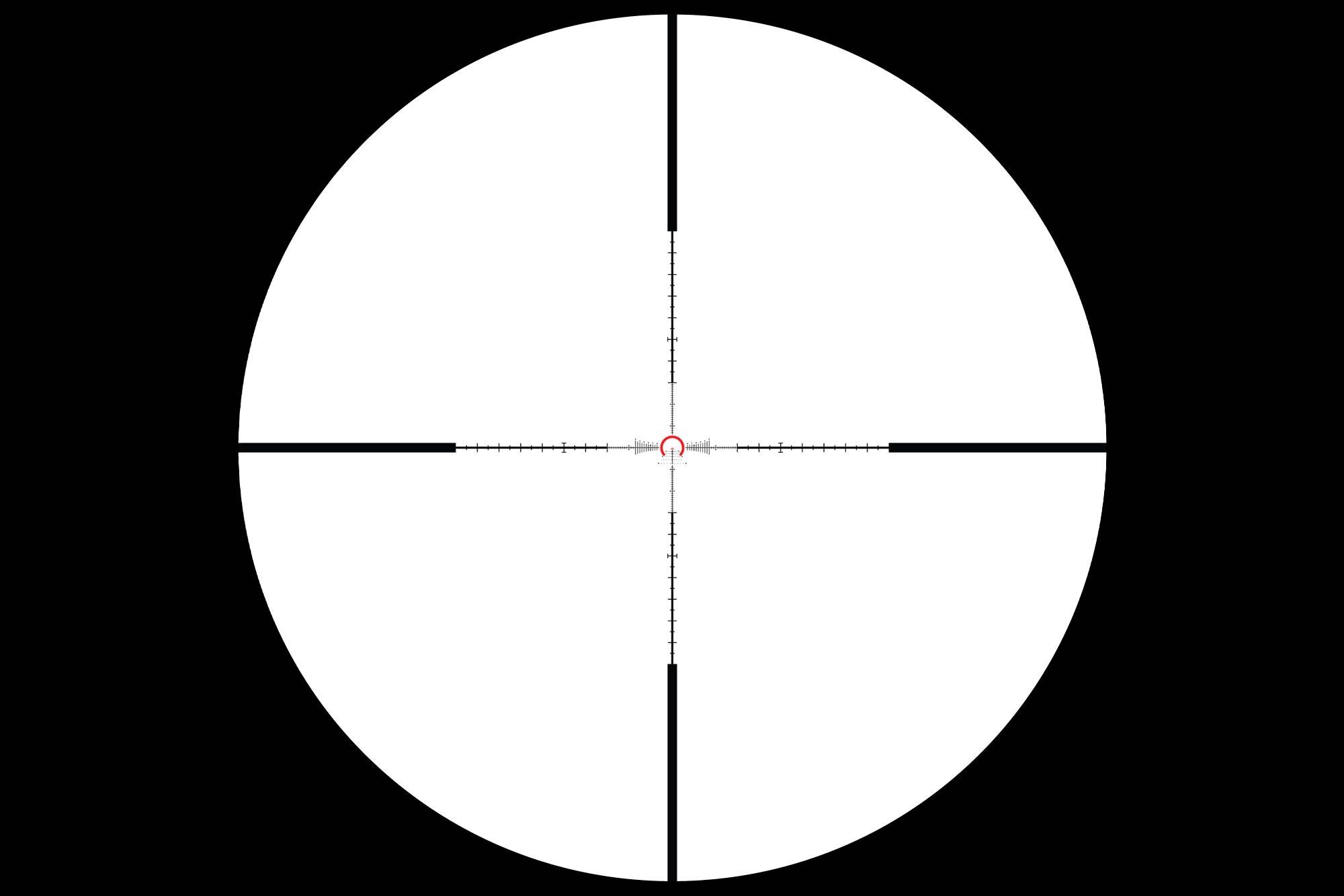

This 1-8x24mm PLx Compact scope is equipped with the first focal plane ACSS Raptor M8 Yard reticle. At low magnifications, the large illuminated horseshoe draws the eye for incredible engagement speed at close quarters, comparable to a red dot. At 8x, the full features of the ACSS reticle become available, providing automatic ranging and bullet drop compensation to 800 yards, moving target leads, a precise center chevron aim point, and wind holds for both 5 and 10 mph cross winds.

Whether you're looking for a workhorse optic for tactical shooting, competition, or your next hunt, the uncompromising clarity and quality of the PLx series may be exactly what you're looking for. These remarkably flexible scopes will help you dominate close quarters and get fast predictable hits out to 800 yards. To top it off, this fantastic scope is covered by a lifetime warranty.
See More
PA-PLXC-1-8X24F-RAPTOR-5.56Y MANUAL 1
PA-PLXC-1-8X24F-RAPTOR-5.56Y MANUAL 2

Specifications

Battery TypeCR2032 3V Lithium Coin
BrandPrimary Arms
Click Value0.1 Mil
ColorBlack
Exit Pupil DiameterLow: 8mm / High: 3mm
Eye ReliefLow: 3.2 in / High: 3.7 in
Field View 100Low: 121 ft / High: 14.6 ft
Focal PlaneFirst Focal Plane
IlluminatedIlluminated
Length9.28 in.
Magnification1X - 8X
Mount Compatibility30mm
Night Vision CompatibleNight Vision Compatible
Objective Diameter24mm
Optic SeriesPLx
ReticleACSS Raptor M8 Yard
Reticle ColorRed
Reticle TypeBDC
Total Elevation Adjustment100 MOA/29.1 MIL
Total Windage Adjustment100 MOA/29.1 MIL
Tube Diameter30mm
Turret Features
Warranty
Weight16.95 oz.
  • Learn More About The Primary Arms PLx Compact 1-8x24
  • The Low Power Variable Optic refined - New PLX Compact LPVO
  • Primary Arms Compact PLx-1-8x24mm FFP Scope Review: The Best LPVO?
California Prop 65 warning

 WARNING: This product can expose you to chemicals, which are known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

Ratings & Reviews

10 reviews

5
  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Outstanding glass with very low view profile/target obstruction

by

This is an awesome LPVO on par with the Vortex Razor and other premium scopes with the bonus of the amazing ACSS reticle. I would HIGHLY recommend it over all other 1-8 LPVOs.

It's a keeper!

by

Overall: Great optic – slick combo with a Scalarworks Leap 08 on my 16” AR. I Exchanged a NightForce NX8 1-8 MOA right after buying, and comparatively - wouldn’t want to give this one up.
PROS:
Great packaging. Shorter and lighter than most, particularly at price point. Excellent turrets with positive adjustment at .1MOA. “Off-stops” between illumination settings - how they all should be. Decent throw-lever included. Adjustments and fitment are tight and crisp. Great glass, good eye relief and eye box – usable at both 1X for reaction/CQB and at 8X as a scope. Reticle is excellent, about perfect – at 1X has the look of an enhanced red-dot with crossbars quickly guiding you in, and as you ratchet up magnification the finer details of the ACSS begin to open up for BDC, etc. Many built-in holdovers and references to use on that end.
CONS:
Could use more brightness for daytime (similar with FFP’s in general) and scale brightness better across the 10 levels.

Right up there with the premium competition...+ACSS

by

I compared the Vortex and Nightforce scopes to this and you can't beat the quality PLUS having the ACSS reticle. The eye relief is good. You won't be disappointed with this scope.

Clear, flat-ish, wide FoV

by -

Given the design constraints (1-8x FFP LVPO) this optic is outstanding.

I'm very impressed with this Japanese glass, overall build quality, turrets and lightweight for the design. There's minimal distortion at 8x given it's a FFP 1-8x LVPO. You can see some outer edge bending at 8x but it's not distracting and won't give you a headache like cheaper glass will over hours of spotting.

Side note, the customer service at PA was fantastic at helping alleviate a minor order issue. Great people.

Keep up the great work PA!

Phenomenal Optic

by

For context, I have a collection of Trijicon, Vortex, and Nightforce LPVOs mounted on my rifles and have used many others through the years. This is my new favorite. I'm blown away by the quality and practicality of this optic. It's incredibly lightweight, solid, compact, and despite all these typically "compromising" qualities when it comes to optical performance, it outperforms all of my other LPVOs in clarity and FOV. The gun community often overstates how many optics in this price range "perform just as good as the $3k scopes" but in this case it's 100% true, and then some. Primary Arms you've accomplished something incredible with this scope!

Best AR general optic available in any price range

by

The reticle with the firm factor is game changing. Best reticle in class, no questions asked. Easy, simple, and fast. The 1x is slower than 1x on a 4x or 6x, but physics. It’s tough and very light. I prefer it over my ATACR, NX8, or razor g2. Mounted with a reptilia AUS and an RMR on top it is superbly versatile and lighter than any other package I’ve tried. The glass is good you can’t appreciate it at this magnification. If you want to dial, do it. The turrets are smooth and accurate, but the reticle makes it unneeded. I can’t speak highly enough about this scope. In the LPVO 1-6 through 1-10 class it is the best on the market, for any price.

PLX-1-8X24MM FFP RIFLE SCOPE

by -

Everything exactly as advertised. It was really easy to sight in. Glass is clear and the reticle works like a charm. Was hitting groups of 1moa or less within 15 minutes of my first shot.

Outstanding

by -

After going back and forth between this guy, the NX8, and the Razor gen 2 I went with the PLXC and I’m glad I did.

Just like everyone says… lite weight, clear glass, very bright “dot” and the ACSS reticles are always awesome.

Outstanding

by -

This review is based on quality alone as I haven't shot it yet. I own two SLx LPVOs for reference. Moving up to this scope was like going from 1080P to 4k. It's built like a tank yet weighs slightly over 1 pound. Don't get me wrong the SLx is worth every penny and are great but this is next level

Wow...

by -

This is my first "nice" scope, so take it with a grain of salt. I'm completely blown away by the quality though.

Performance at 1x is absolutely fantastic. Seriously, I've never seen a scope with such a flat image at 1x, let alone with the clarity this thing has. It's pretty amazing. Everything looks amazing up until about 6x, where the image starts to fall apart a bit. Adjusting the diopter again an this point helps a bit, but this optic seems to shine between 1-6x. At 8x, the image quality isn't as impressive, and the eye box gets really tight. It's still useable, but having transitioned from the wonderful views at low magnification it's a bit of a letdown at 8x.

I would really like to see an optic with these same qualities but limited to/more optimized for 1-6x.
