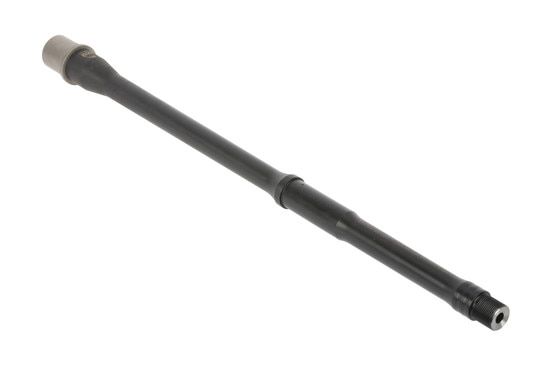

Faxon Firearms 16" 6.5 Grendel Type II Mid-Length Gunner Barrel

SKU: 15BG8M16NGQ-5R-NP3
MPN: 15BG8M16NGQ-5R-NP3
Manufactured by Faxon Firearms

$223.25

In Stock

"We ship fast!" Order by 5PM EST M-F or 12PM EST Saturday and your order ships same day. FFL items may take longer to process.

$223.25

In Stock

Details

Faxon Machining engineers and manufactures components that are found everywhere. In theaters of combat, on the ocean floor, in cars, in aircraft, on the ISS, and on Mars. Now, they bring their engineering excellence to bear on providing new and innovative components for the AR-15 platform that set the standard for quality. Faxon Firearms, manufacturing strategic solutions for tactical problems.

Manufacturing of Faxon barrels begins and ends in their Cincinnati, Ohio facility under ISO 9001/9100 quality certifications. Each barrel they produce is fully stress relieved, air-gauge tested, and 11-degree target crowned to ensure superior accuracy.

Crafted from the best materials, either certified 4150 MIL-SPEC steel or 416R stainless, each barrel undergoes rigorous quality controls before QPQ finishing and final inspection. Once finished, each barrel is examined for proper headspace using precision custom hardened gauges.

Safety Note: Choosing 6.5 Grendel comes with an added complication. There are “Type I” and “Type II” bolt/barrel specifications out there, and you CAN NOT mix and match parts for each of them without risk of damage and/or injury. Type II is by far the most popular configuration, but pay attention to what you are buying! A Type I bolt won’t chamber rounds in a Type II barrel at all. Even worse, a Type II bolt mated to a Type I barrel will create excessive headspace and result in a rifle that is dangerous to fire.

Features:
  • Chambered in 6.5 Grendel with a 1:8 twist
  • Type II
  • 416R stainless steel
  • Mid-length gas system
  • Gunner profile
  • 5/8x24 thread pitch
  • Gas seat diameter: 0.750"
  • QPQ nitride finish
  • 5R Button rifled

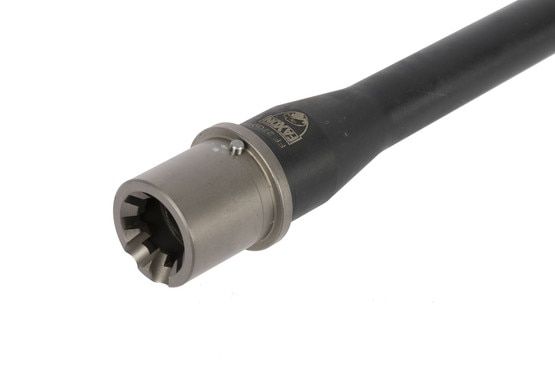

  • Nickel Teflon coated M4 barrel extension
  • Magnetic particle inspected
  • 11-degree target crown
  • Weight: 1.53 lbs

Specifications

Barrel CoatingSalt Bath Nitride
Barrel ContourGunner
Barrel Length16
Barrel LiningSalt Bath Nitride
Barrel Material416R Stainless Steel
BrandFaxon Firearms
Caliber Gauge6.5 Grendel Type 2
Feed RampsM4
Gas Seat Diameter.750
Gas System LengthMid-Length
PlatformAR-15
Thread Pattern5/8 X 24
Twist Rate1:8 5R
Weight1.53 lbs
