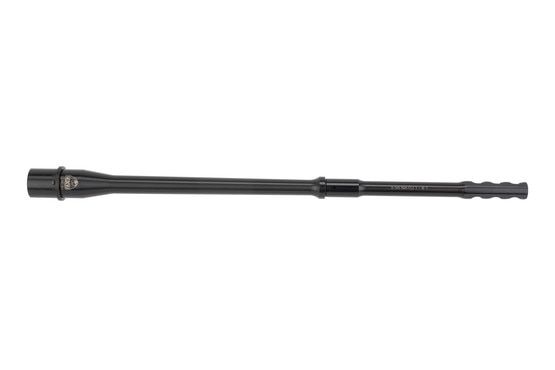

Faxon Firearms 5.56 Mid-Length Pencil AR-15 Barrel with Integral Brake - 16"

Details

This Faxon Firearms 5.56 AR-15 barrel features an integrally machined 3-port muzzle brake, so you don’t have to send your barrel and muzzle brake off to a gunsmith, spend extra money, and wait a crazy amount of time to get your barrel pinned and welded to meet the overall 16” length. This gives you the lighter weight and better maneuverability of a shorter barrel without having to go through the NFA. The muzzle brake also features a slim outer diameter, so you can easily install and remove gas blocks. It features a mid-length gas system and pencil profile to reduce weight as much as possible.

Features:

14.5” rifled section with 1.5” integral muzzle brake
Chambered in 5.56 NATO with a 1:8 twist
4150 chrome moly vanadium steel
Mid-length gas system
Pencil profile
QPQ nitride finish
Button rifled
Gas seat diameter: 0.625"
Gas port diameter: .078"
Gas block journal length: 1.1"
M4 barrel extension
Magnetic particle inspected
11 Degree target crown
Weight: 1.2 lbs

This barrel comes with all the quality you expect from Faxon Firearms like 4150 CMV Steel, Nitride finish, and button rifling. They are fully stress relieved, air-gauge tested, magnetic particle inspected, and 100% made in house.

Faxon Machining engineers and manufactures components that are found everywhere. In theaters of combat, on the ocean floor, in cars, in aircraft, on the ISS, and on Mars. Now, they bring their engineering excellence to bear on providing new and innovative components for the AR-15 platform that set the standard for quality. Faxon Firearms, manufacturing strategic solutions for tactical problems.

Back

Specifications

Barrel CoatingSalt Bath Nitride

Barrel ContourPencil

Barrel Length16

Barrel LiningSalt Bath Nitride

Barrel Material41V50 Chrome Moly Vanadium Steel

BrandFaxon Firearms

Caliber Gauge5.56 NATO

Feed RampsM4

Gas Seat Diameter.625

Gas System LengthMid-Length

PlatformAR-15

Thread PatternTarget Crown

Twist Rate1:8

Weight1.2 lbs.
