Forward Controls Design AR-15 Augmented Bolt Catch v3 - Dimpled - Rearward Biased
Manufactured by Forward Controls Design
Details
Details

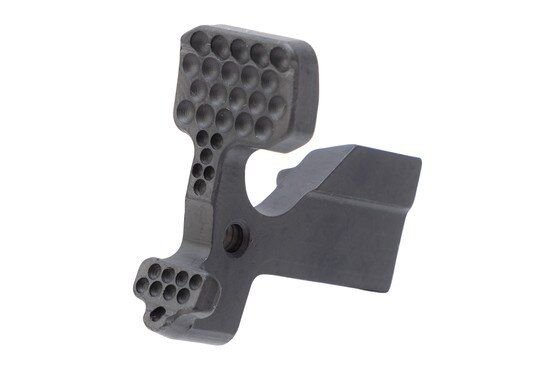

The Augmented Bolt Catch/Release was purpose-designed for the AR15/M16 receiver for easier activation when you have an ambidextrous magazine release lower receiver. With an angled and larger top paddle, and lower paddle sporting increased surface area, it was created to eliminate the difficulty associated with accessing factory bolt catch's lower paddle with ambidextrous magazine catch on that receiver. Identification by feel can be difficult, especially in gloves, caused by most ambidextrous mag releases having lower paddles on the same vertical plane as the factory bolt catch lower paddle.
In order to remedy this issue, the lower paddle protrudes further and is set at a 10 degree angle for a more even surface area. This puts the lower paddle and Ambi-Catch's paddle on different vertical planes. The ABC/R's top paddle is made larger with a 5 degree angle at the lower 50% and 10 degree angle at upper 50% can't. This makes it easier for the palm or thumb to access.
The notch immediately above the ABC/R's lower paddle provides tactile feedback to give the user reference for the lower paddle.
The rearward biased version is for left-handed users that use left index fingers to access the bolt catch paddles. On this version, the upper paddle is shifted to the butt stock end for better accessibility to the upper paddle.
Machined from billet 8620 alloy steel and treated with black nitrided finish, the ABC/R is designed and manufactured in the USA.
Includes:
Features:
Please note the ABC/R are not designed for use on 9mm receivers that use Colt 9mm magazines which require a Colt 9mm bolt catch, or Armalite AR10B receivers.
ABC/R v3 is incompatible with CMT based billet lower receivers. The horizontal "butterfly" extension requires the bolt catch bosses to be TDP spec with a radius in the corner.
In order to remedy this issue, the lower paddle protrudes further and is set at a 10 degree angle for a more even surface area. This puts the lower paddle and Ambi-Catch's paddle on different vertical planes. The ABC/R's top paddle is made larger with a 5 degree angle at the lower 50% and 10 degree angle at upper 50% can't. This makes it easier for the palm or thumb to access.
The notch immediately above the ABC/R's lower paddle provides tactile feedback to give the user reference for the lower paddle.
The rearward biased version is for left-handed users that use left index fingers to access the bolt catch paddles. On this version, the upper paddle is shifted to the butt stock end for better accessibility to the upper paddle.
Machined from billet 8620 alloy steel and treated with black nitrided finish, the ABC/R is designed and manufactured in the USA.

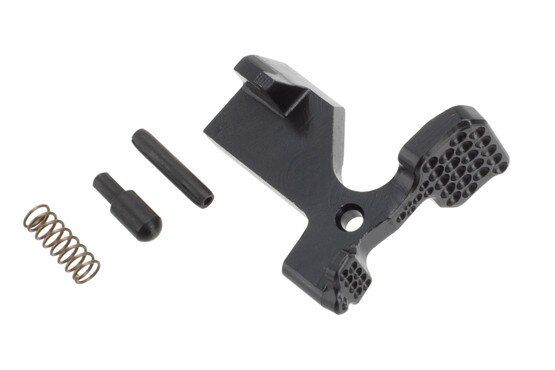

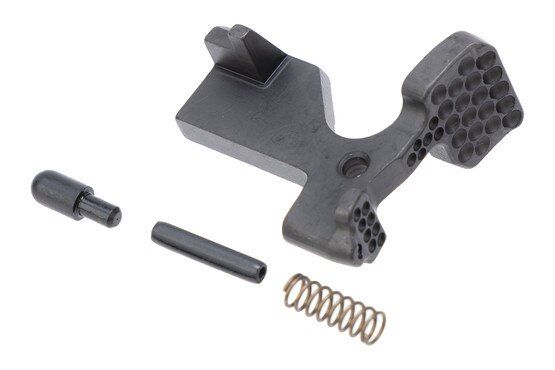

Includes:
- Bolt catch roll pin
- Plunger
- Spring
Features:
- Texture: Dimpled
- Upper Paddle Option: Rearward Biased
- Billet 8620 Alloy Steel
- Black Nitride Finish
- Helps prevent accidental activation of an ambi mag release
Please note the ABC/R are not designed for use on 9mm receivers that use Colt 9mm magazines which require a Colt 9mm bolt catch, or Armalite AR10B receivers.
ABC/R v3 is incompatible with CMT based billet lower receivers. The horizontal "butterfly" extension requires the bolt catch bosses to be TDP spec with a radius in the corner.
California Prop 65 warning
WARNING: This product can expose you to chemicals, which are known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Ratings & Reviews
2 reviews
3/4/2025 8:54 pm ABC-Rv3-AA-RB
Fantastic for lefties.
by CW -
Easy to install catch although I run a lower that uses a set screw. The dimpling helps with traction however the rear biased makes it super easy to close the bolt with a finger being left handed. I will be running these and radians on
12/7/2024 3:15 pm ABC-Rv3-AA-RB
Love FCD parts
by G -
I love this bolt catch. Best part is the dimple texture. I really like it more than the stand serrations.
