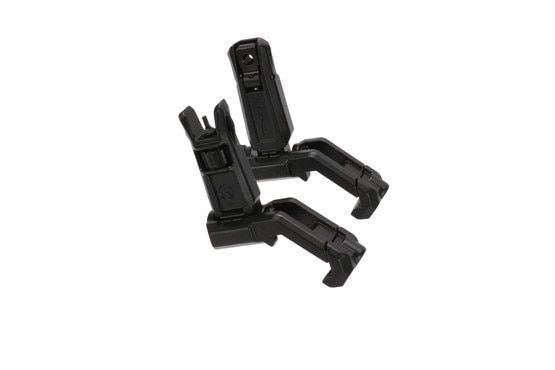

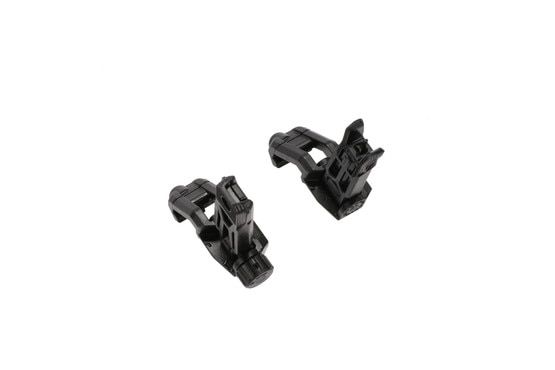

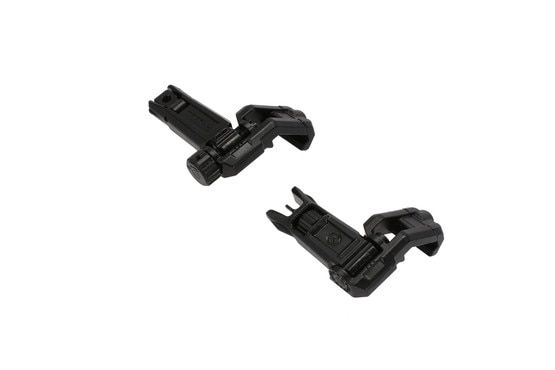

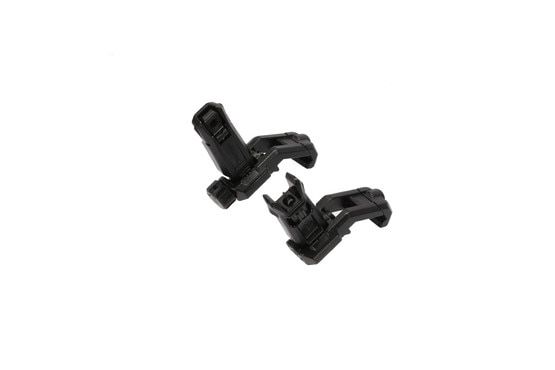

Magpul MBUS Pro Offset Sight Set

Details

The MBUS Pro Offset Sights are part of an effective supplemental aiming system with magnified optics on Picatinny mounting surfaces. In the event of a nonfunctional primary optic or a close-range target, rotating the rifle 45-degrees provides a fully-featured iron sighting solution. The MBUS Pro Offset Front Sight features durable Melonited steel construction, positive detent lockup when deployed, tool-less adjustment of the front post, and a low-profile footprint.

Features:

~1 MOA (1.131"/100m) per click with a 14.5" sight radius
~0.7 MOA (0.820"/100m) per click with a 20" sight radius
Case hardened steel construction with Melonite finish
Factory equipped with the Magpul Enhanced Front Sight Post
.040” Match width for increased precision
.060” Standard width for maximum visibility
Picatinny rail compatible
Tool-less elevation adjustment knob
Positive detents in both the up and down positions as well as on the elevation knob
Standard AR height over bore - 45-degree offset - right-hand side
Weight: 1.8 oz
Height above rail: ~0.18"
Length - Stowed: 1.9"

The MBUS Pro Offset Rear Sight features durable Melonited steel construction, positive detent lockup when deployed, tool-less windage adjustment, dual rear apertures, and a low-profile footprint.

Features:

~0.5 MOA (0.566"/100m) per click with a 14.5" sight radius
~0.4 MOA (0.410"/100m) per click with a 20" sight radius
Case hardened steel construction with Melonite finish
Picatinny rail compatible
Tool-less windage adjustable with low-profile knob
Positive detents in both the up and down positions
Standard AR height over bore when deployed - 45-degree offset - right-hand side
Height above rail: ~0.18"
Length - Stowed: 2.0"
Small aperture diameter: 0.07"
Large aperture diameter: 0.19”
Weight: 2.0 oz

Magpul continues to grow and develop based on innovation, simplicity, and efficiency. At Magpul, mission driven requirements inform their product design, materials, and manufacturing, focusing on efficiency without sacrificing quality or performance.

Back

Specifications

BrandMagpul

California Prop 65 warning

WARNING: This product can expose you to chemicals, which are known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

Back

4 stars
0 reviews

3 stars
0 reviews

2 stars
0 reviews

1 star
0 reviews

12/17/2022 9:32 pm MAG-MBUS-PRO-OFFSET

Mbus Pro Offset flip up sights

by Jarhead

I run Magpul Mbus Pro Offset sights on my AR’s with LPVO’s. No need to remove the optic. Just flip the sights up, cant the rifle 45 degrees and you continue rockin’rollin’. It’s that simple! These baby’s are very well made and can handle the bumps and field use. When folded, they are low profile and tuck in very nicely. I think they look cool as well. I highly recommend these sights. They are kind of pricey, but worth it my opinion-buy once, cry once kind of thing. Take advantage of PA’s Sales every now and then. Semperfi

Was this review helpful?

1/7/2023 6:39 pm MAG-MBUS-PRO-OFFSET

Mbus Pro Offset Front/Rear Sights

by Jarhead

The same outstanding quality as their other Mbus Pro Sights. Built solid and amazing design and functionality. I use these offset buis on my RECCE 14 with non QD scope mount LPVO. I love that they tuck in close to the rail when folded and very low profile when engaged. They also lock up tightly in place with no wiggle like other back up iron sights. I highly recommend these Mbus Pro sights and thank you PA your outstanding customer service and fast shipping—Semperfi

Was this review helpful?
