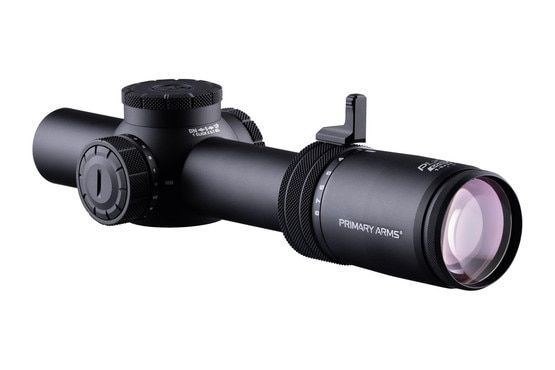

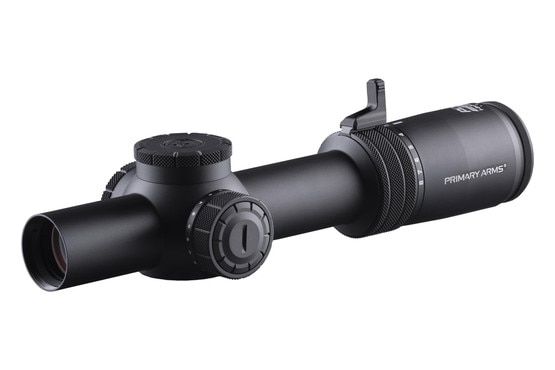

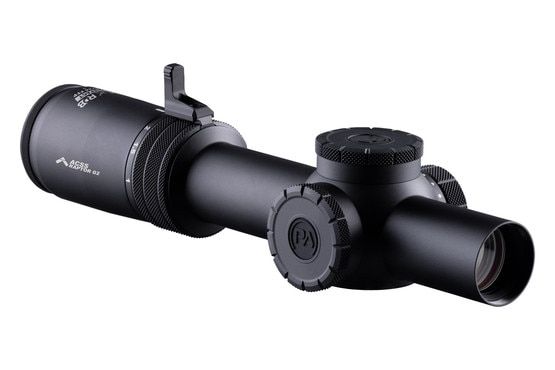

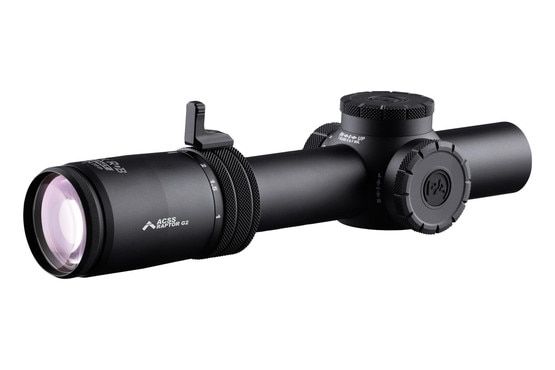

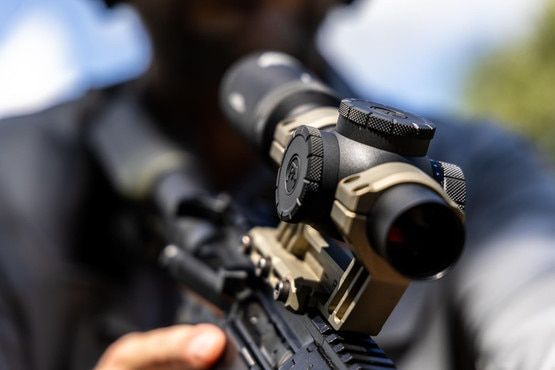

Primary Arms Compact PLxC 1-8x24 FFP RDB Rifle Scope - ACSS Raptor 5.56/.308 Yard G2 Reticle

Manufactured by Primary Arms
SKU: PA-PLXC-1-8X24F-RDB-RAPTOR-5.56Y-G2
MPN: 610210
Manufactured by Primary Arms
(0) No Reviews yet
$1,749.99

In Stock

Non-FFL orders placed before 3:30pm CST will ship same business day. Non-FFL orders placed after 3:30pm CST will be shipped the next business day. FFL orders will ship within 3 business days once transfer details are provided.

FREE
Shipping
Receive FREE shipping on your entire order when you purchase this item.
For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details

Details

Details

The PLxC 1-8x FFP Compact Rifle Scope is now features RDB (Red Dot Bright®) diffractive reticle technology. This unique design is much more efficient than traditional etch-and-fill reticles delivering red dot brightness without compromising battery life all while still utilizing a first focal plane reticle. The more efficient and brighter illumination is further improved by the use of AutoLive® technology that helps to conserve battery life and ensures your reticle is visible the moment you need it.

This LPVO is part of the top tier optics line called PLx. PLx optics meet the exacting demands of professional use, offering impeccable glass clarity and advanced features from state-of-the-art production facilities.

Features:

  • Red Dot Bright Diffractive Reticle technology
  • ACSS Raptor 5.56/.308 Yard G2 Reticle
  • Compact and Lightweight design
  • Premium grade Japanese ED glass with enhanced clarity and light transmission
  • First focal plane reticles stay true at every magnification
  • Ultra-Wide field of View
  • High strength 30mm tube
  • Easy to swap dovetail throw lever
  • 1-8x magnification range is red dot fast in close quarters and accurate at medium range
  • AutoLive Motion-Sensing illumination technology
  • Steel On Steel (SOS®) Adjustable turrets
  • Adjustable illumination including night vision settings
  • Water proof, shock resistant, and fog resistant
  • Durable hardcoat anodized black finish
  • Made in Japan
  • Protected by a lifetime warranty

The PLxC 1-8x RDB utilizes premium-grade Japanese ED lenses for superior light transmission, color correctness, and image clarity and when combined with its ultra-wide field of view (121ft @ 100yd) and forgiving eye relief, this scope is capable of exceptional performance from close quarters to long-range. The integrated magnification lever allows for quick transitions from 1x to 8x while the first focal plane reticles stay true at every magnification level for accurate holdovers no matter the distance.

All these features are packed into the same compact scope body that you know and love. At only 9.28 inches long and weighing 16.95 ounces, this 1-8x low power variable optic is designed to be extremely water and shock resistant without adding unnecessary weight to your fighting rifle and giving you the capabilities you need to get the job done in close quarters out to 800 yards.

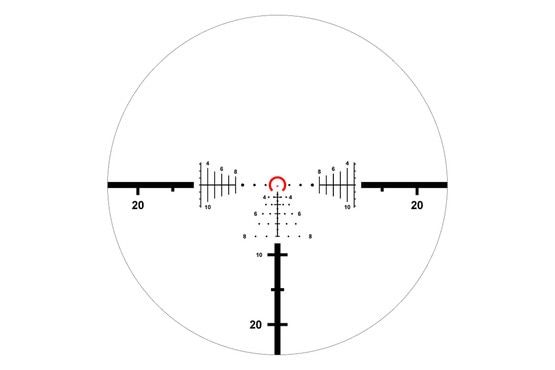

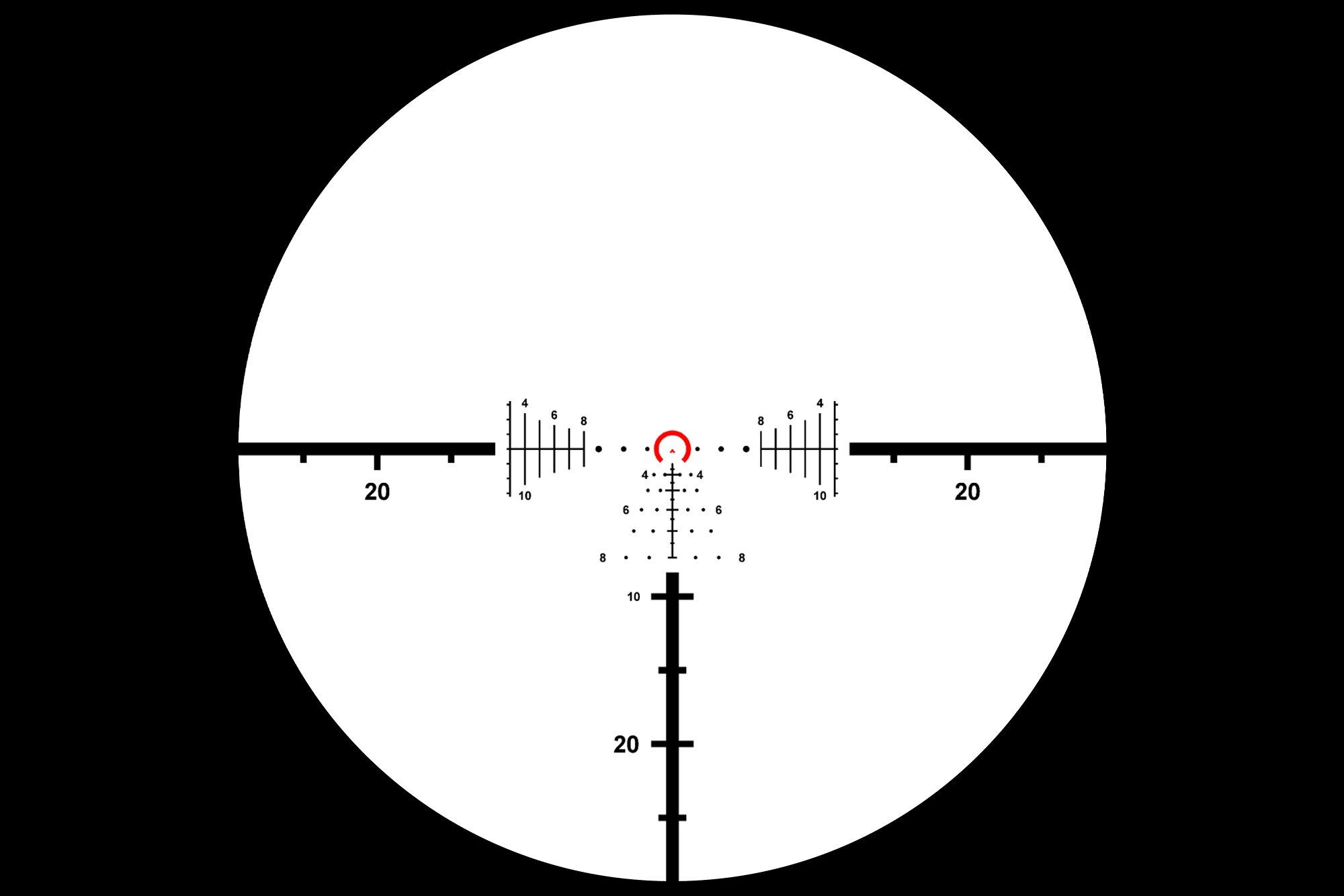

Calibrated for 5.56, .308, and similar cartridges, the first focal plane diffractive ACSS Raptor G2 combines an effective BDC design with a true Red Dot Bright® horseshoe and chevron. This reticle offers full vertical and horizontal ranging stadia, as well as moving target leads and wind holds.

See More
PA-PLXC-1-8X24F-RDB-RAPTOR-5.56Y-G2 MANUAL 1
PA-PLXC-1-8X24F-RDB-RAPTOR-5.56Y-G2 MANUAL 2

Specifications

Battery TypeCR2032 3V Lithium Coin
BrandPrimary Arms
Click Value0.1 Mil
ColorBlack
Exit Pupil DiameterLow: 8mm / High: 3mm
Eye ReliefLow: 3.2 in / High: 3.7 in
Field View 100Low: 121 ft / High: 14.6 ft
Focal PlaneFirst Focal Plane
IlluminatedIlluminated
Length9.28 in.
Magnification1X - 8X
Mount Compatibility30mm
Night Vision CompatibleNight Vision Compatible
Objective Diameter24mm
Optic SeriesPrimary Arms PLx
ReticleACSS Raptor 5.56 Yard G2
Reticle ColorRed
Reticle TypeBDC
Total Elevation Adjustment100 MOA
Total Windage Adjustment100 MOA
Turret FeaturesCapped Turrets, Low Profile
WarrantyLifetime
Weight16.95 oz.
