Primary Arms Compact PLxC 1-8x24 FFP Rifle Scope - Illuminated ACSS Raptor M8 Yard 5.56 / .308 Reticle - Flat Dark Earth

Manufactured by Primary Arms
SKU: PA-PLXC-1-8X24F-RAPTOR-5.56Y-FDE
MPN: 610201
Manufactured by Primary Arms
1 Review
$1,499.99

In Stock

Orders of non-FFL items will ship same day if ordered before 3:30pm CST (M-F). FFL orders will ship within 5 business days if transfer details are provided.

FREE
Shipping
Receive FREE shipping on your entire order when you purchase this item.
For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details

Details

Details

This rifle scope is part of the top tier optics line called PLx. PLx optics meet the exacting demands of professional use, offering impeccable glass clarity and advanced features from state-of-the-art production facilities.

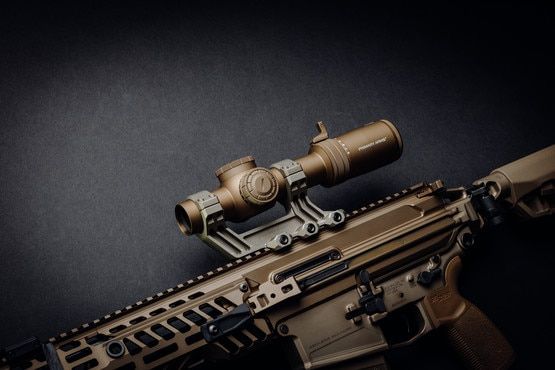

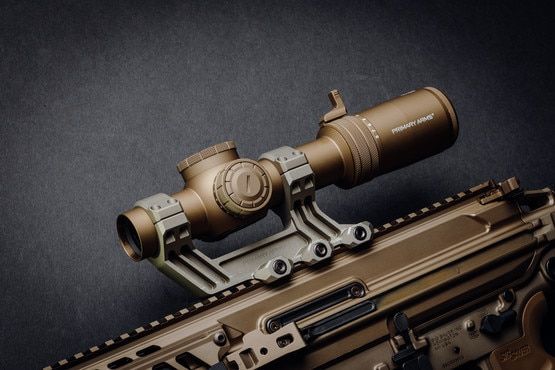

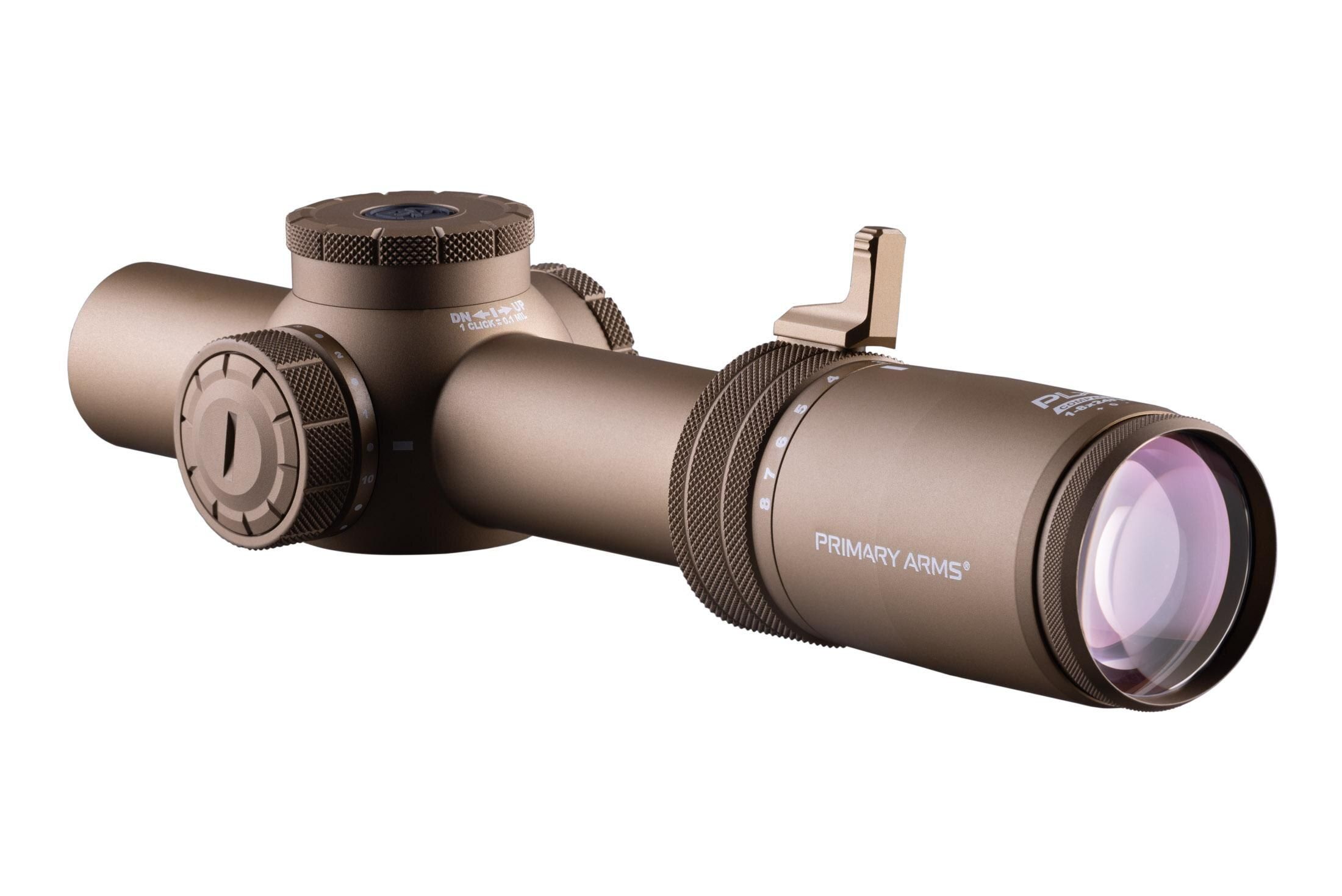

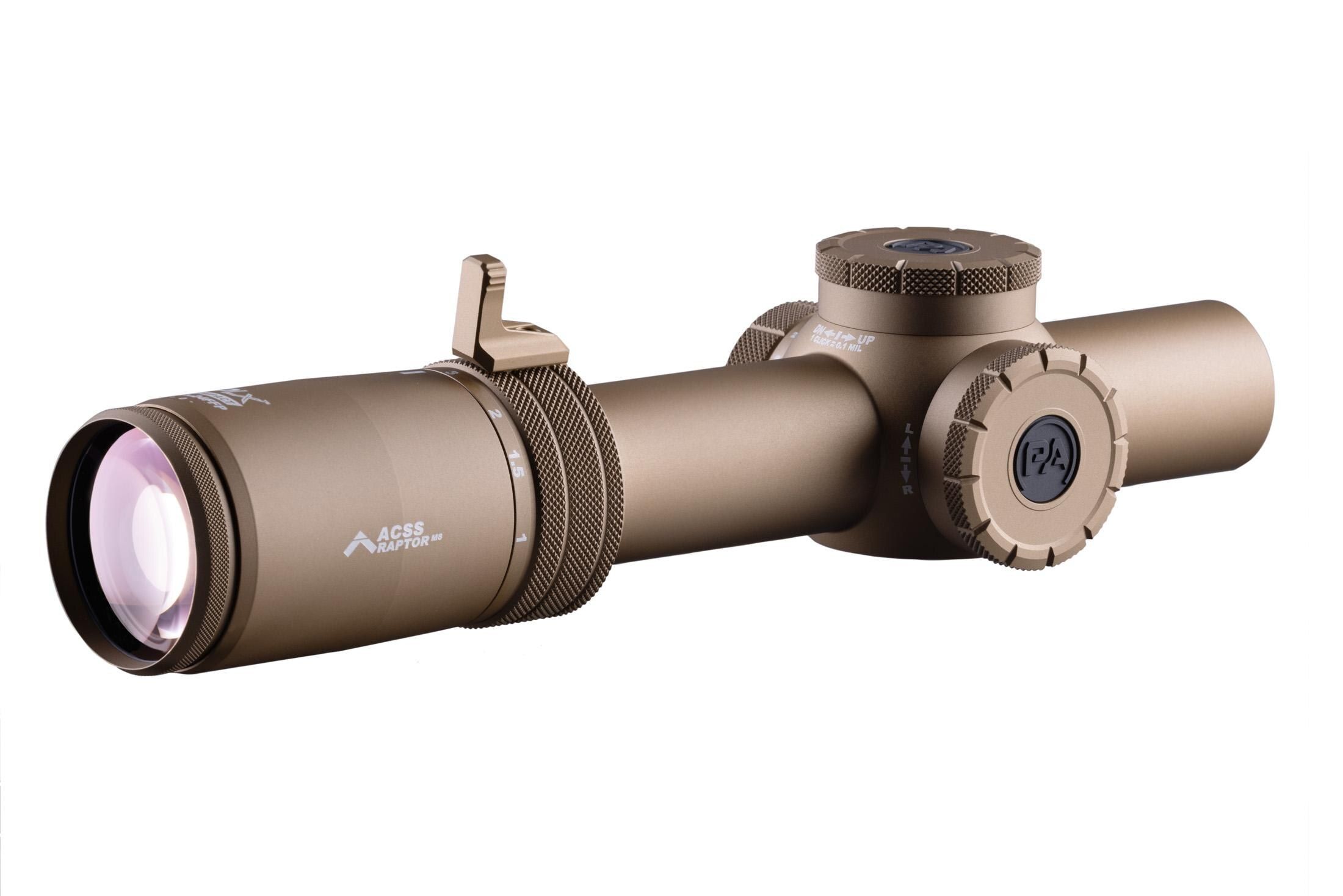

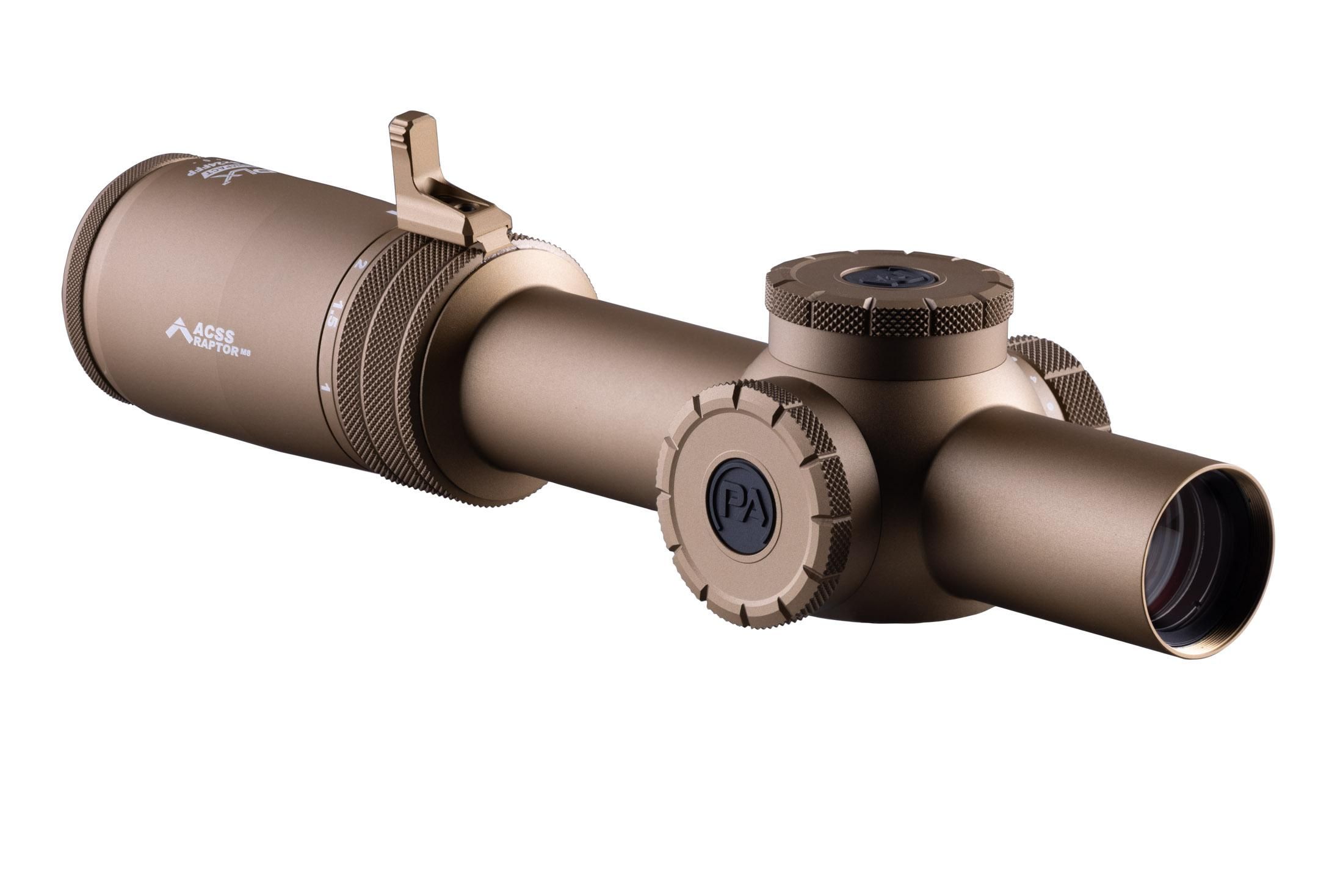

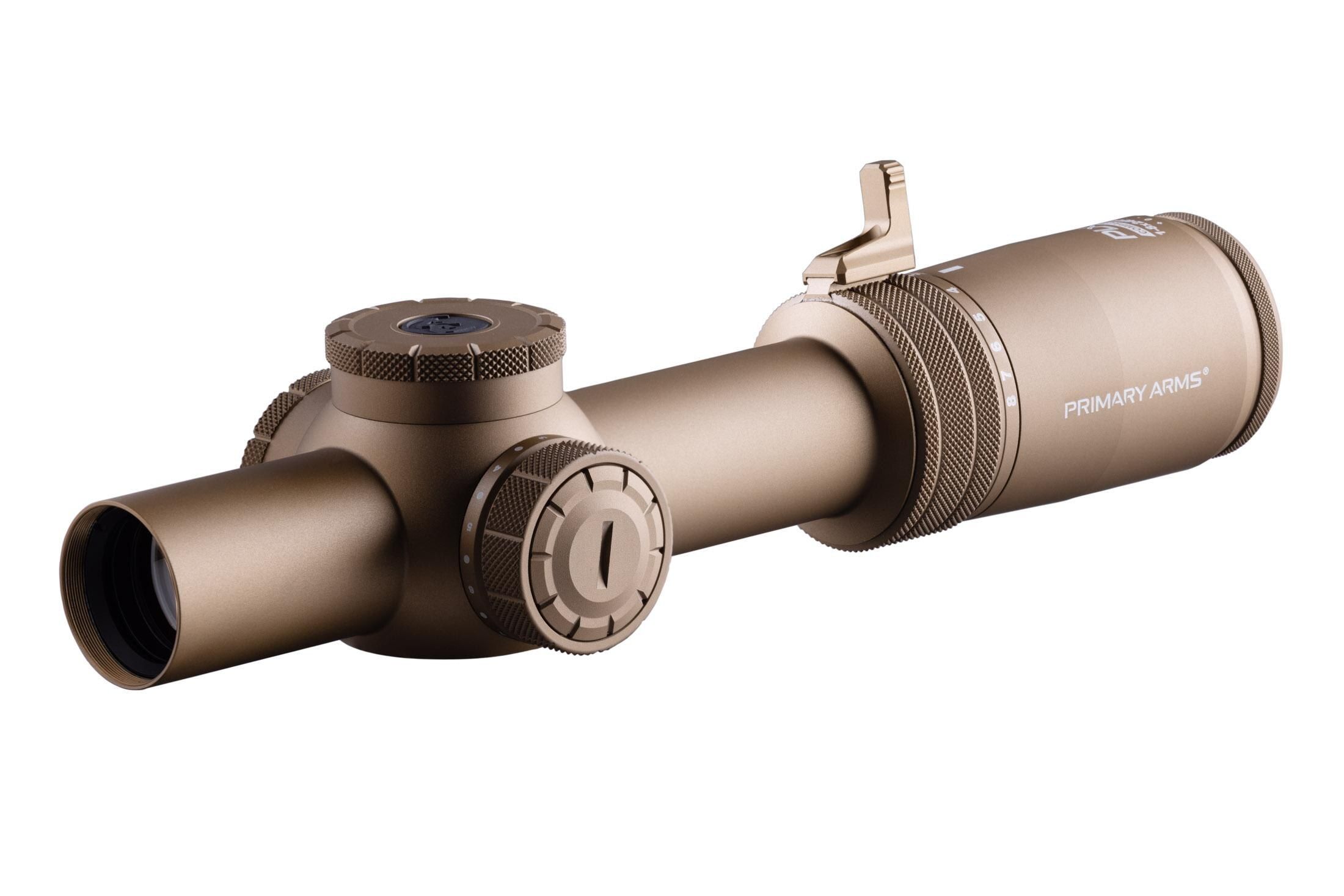

Improving on its predecessor, the fully redesigned PLx 1-8x24mm FFP Compact Rifle Scope has a 9.28-inch OAL and weighs only 16.95 oz. It features premium-grade Japanese ED lenses for superior light transmission, color correctness, and image clarity. Combined with its ultra-wide field of view (121ft @ 100yd) and forgiving eye relief, this scope is capable of exceptional performance from close quarters to long-range. Now available in sleek low-signature Flat Dark Earth finish. It comes with a fixed magnification lever installed, but a foldable lever is also available for purchase here.

Features:

  • Compact and Lightweight design
  • Premium grade Japanese ED glass with enhanced clarity and light transmission
  • First focal plane reticles stay true at every magnification
  • Ultra-Wide field of View
  • High strength 30mm tube
  • Easy to swap dovetail throw lever
  • User-configurable turrets
  • 1-8x magnification range is red dot fast in close quarters and accurate at medium range
  • AutoLive Motion-Sensing illumination technology
  • Adjustable illumination from Daylight bright to night vision compatible
  • Water proof, shock resistant, and fog resistant
  • ACSS Raptor Yards M8 reticle for rapid close quarters engagement and fast hits out to 800 yards
  • Durable hardcoat anodized FDE finish
  • Made in Japan
  • Protected by a lifetime warranty

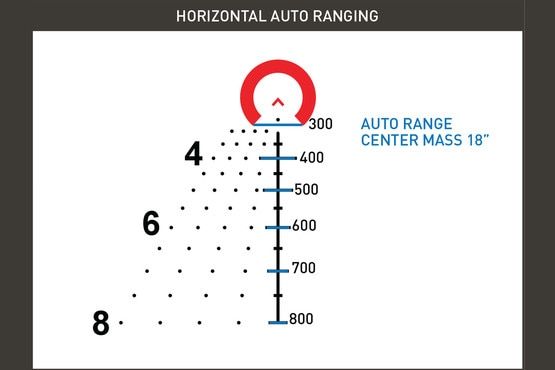

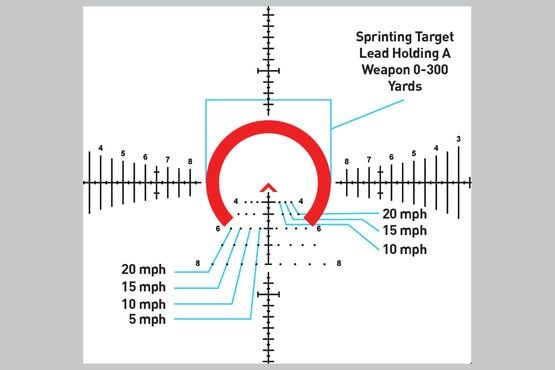

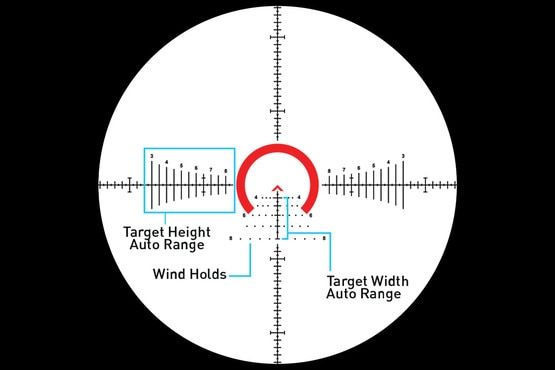

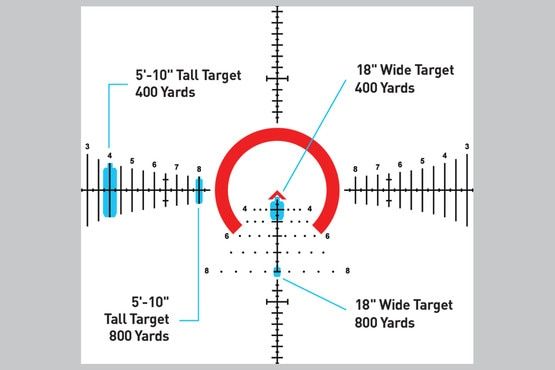

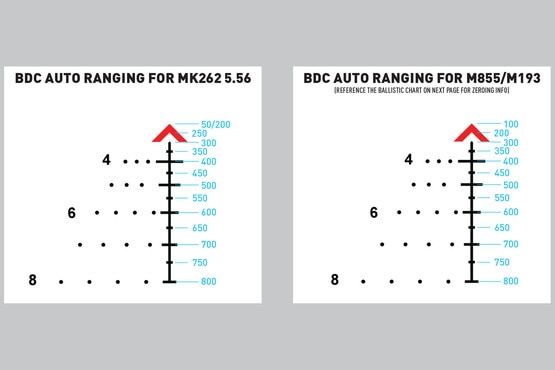

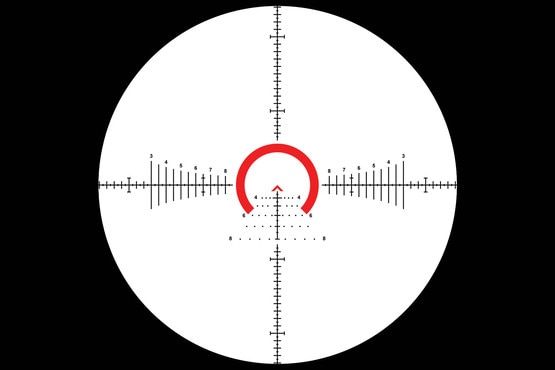

This 1-8x24mm PLx Compact scope is equipped with the first focal plane ACSS Raptor M8 Yard reticle. At low magnifications, the large illuminated horseshoe draws the eye for incredible engagement speed at close quarters, comparable to a red dot. At 8x, the full features of the ACSS reticle become available, providing automatic ranging and bullet drop compensation to 800 yards, moving target leads, a precise center chevron aim point, and wind holds for both 5 and 10 mph cross winds.

Whether you're looking for a workhorse optic for tactical shooting, competition, or your next hunt, the uncompromising clarity and quality of the PLx series may be exactly what you're looking for. These remarkably flexible scopes will help you dominate close quarters and get fast predictable hits out to 800 yards. To top it off, this fantastic scope is covered by a lifetime warranty.

See More
PA-PLXC-1-8X24F-RAPTOR-5.56Y-FDE MANUAL 1
PA-PLXC-1-8X24F-RAPTOR-5.56Y-FDE MANUAL 2

Specifications

Battery TypeCR2032 3V Lithium Coin
BrandPrimary Arms
Click Value0.1 Mil
ColorFlat Dark Earth
Exit Pupil DiameterLow: 8mm / High: 3mm
Eye ReliefLow: 3.2 in / High: 3.7 in
Field View 100Low: 121 ft / High: 14.6 ft
Focal PlaneFirst Focal Plane
IlluminatedIlluminated
Length9.28 in.
Magnification1X - 8X
Mount Compatibility30mm
Night Vision CompatibleNight Vision Compatible
Objective Diameter24mm
Optic SeriesPLx
ReticleACSS Raptor M8 Yard
Reticle ColorRed
Reticle TypeBDC
Total Elevation Adjustment100 MOA/29.1 MIL
Total Windage Adjustment100 MOA/29.1 MIL
Tube Diameter30mm
Turret Features
Warranty
Weight16.95 oz.
  • PLxC 1-8x Product Overview
California Prop 65 warning

 WARNING: This product can expose you to chemicals, which are known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

Ratings & Reviews

1 review

5
  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

My favorite scope

by

The PLXc is an exceptionally well balanced design. I'm not typically a BDC fan, but this one lines up perfectly with my preferred ammo.

Turrets are extremely tactile, illumination is sufficient for my needs, and the glass is exceptional.
