Rearden Mini HT Suppressor Mount Muzzle Device - Taper - 1/2x28 - Heat Treat

Manufactured by Rearden

Details

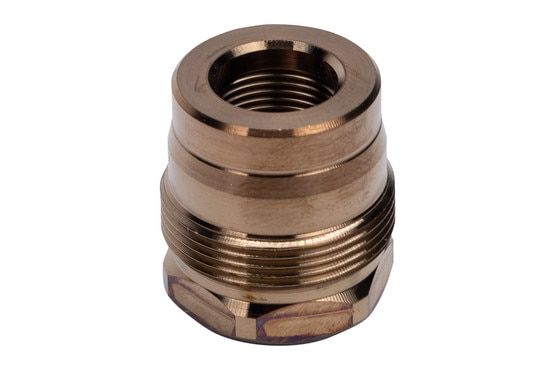

The Rearden Mini Suppressor Mount is a minimalist muzzle device designed to be compatible with Atlas Adapters as well as Plan B equipped suppressors. It is made from 17-4 stainless steel and left in the raw heat treated finish. The Mini features a 25 degree taper for use on tapered barrels like SIG and Q firearms. When mounting this muzzle device, ensure your threads are cleaned, apply a thin layer of Rockset, and torque it down to about 30 ft. lbs. Use an alignment rod to confirm concentricity with the bore and you are good to go. When attaching a suppressor, it is recommended to torque it to 10 ft. lbs.

Note: Use of a Q can with aftermarket suppressor mounts will void your suppressor warranty.

Features:

For 25 degree tapered barrels
17-4 Stainless construction with heat treated finish
Threaded 1/2x28
Compatible with Atlas, Atlas XL adapters and Plan B suppressors
.05" Overrun with Atlas adapter
No overrun with Atlas XL adapter
Shims NOT included
Weight: 1.48 oz.
Length .968"

Back

Specifications

BrandRearden

FinishStainless

MaterialSteel - 17-4 PH Stainless

Suppressor MountQ Taper Mount

Thread Pattern1/2 X 28

Weight1.48 oz.
