Primary Arms SLx 1-6x24mm FFP Rifle Scope - Illuminated ACSS-RAPTOR-300BO/7.62x39

Manufactured by Primary Arms
MPN: 610008
Manufactured by Primary Arms
13 Reviews

In Stock

NOTE: Limit 5 per household. Quantities exceeding 5 will not allow checkout.

Standard orders will ship out within 2 business days or less. FFL orders will ship within 2 business days or less as long as we have the information for the transfer destination.

Receive FREE shipping on your entire order when you purchase this item.



After rigorous field testing, this optic has been given a Gold-tier rating by the National Tactical Officers Association.

This rifle scope is part of our SLx optics line. SLx optics built our reputation for innovation, reliability and value. All SLx optics undergo rigorous field-testing during development to best serve you in any environment.

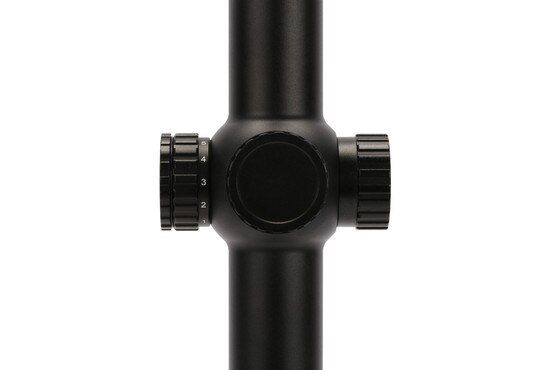

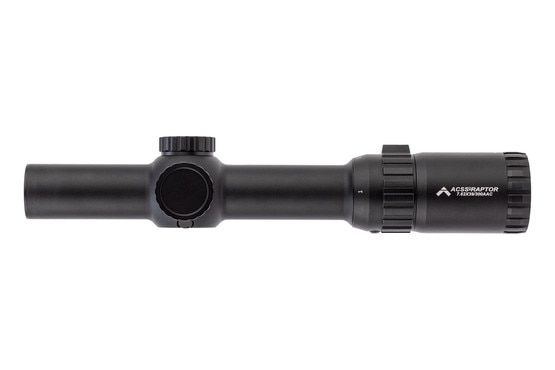

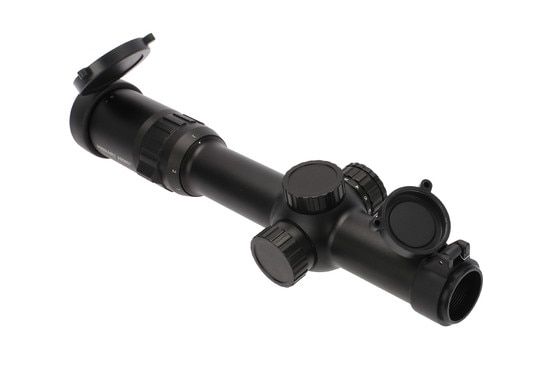

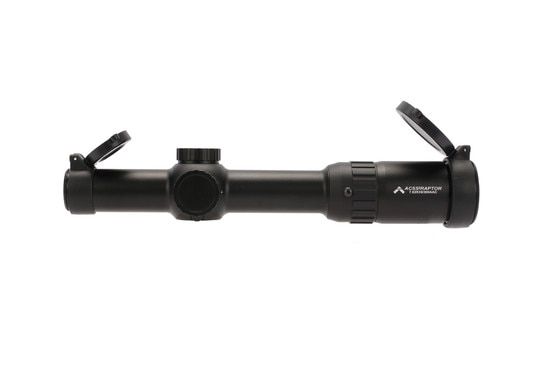

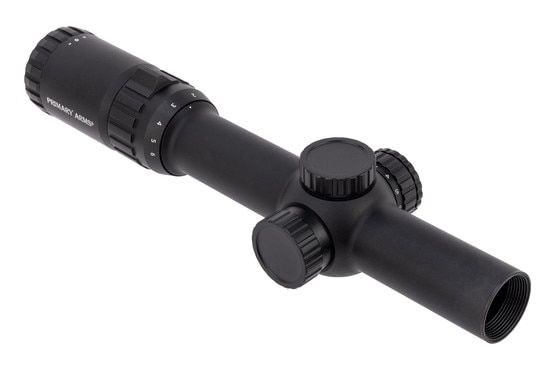

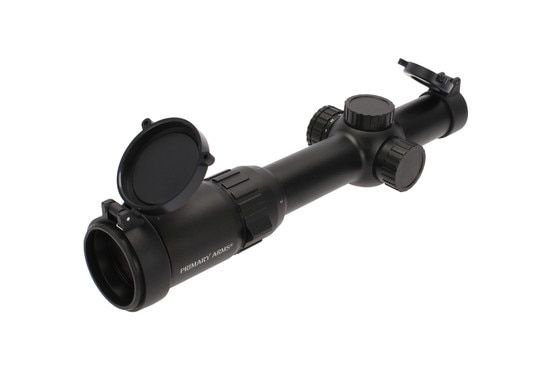

The Primary Arms 1-6x24mm first focal plane takes the proven performance of our Gen III scope body and upgrades the internals to provide first focal functionality. This tough scope features full red reticle illumination, a quick focus eyepiece, and finger adjustable turrets covered by turret caps. The first focal plane construction allows the reticle to be small, fast, and simple at low magnification, with ranging and ballistic drops true at every magnification. This scope is protected by the Primary Arms Lifetime Warranty. If a defect due to materials or workmanship, or even normal wear and tear, has caused your product to malfunction, Primary Arms will either repair or replace your product.

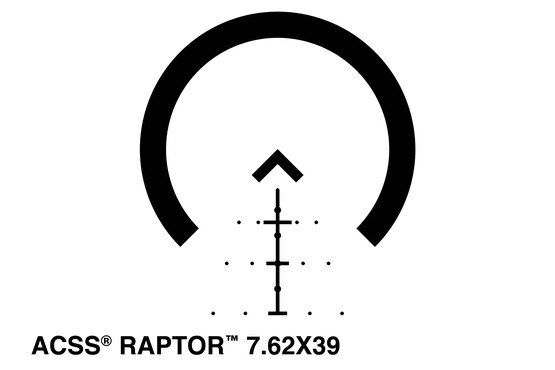

  • First focal plane ACSS Raptor reticle designed for 7.62x39/.300 BLK
  • Includes manual to help you zero for your caliber
  • 11 brightness settings
  • 1-6x magnification
  • BDC accurate at any magnification setting
  • Fully multicoated lenses for optimal light transmission
  • Single piece 6063 aluminum construction
  • Water and fog proof
  • Hardcoat anodized matte black
  • Lifetime warranty

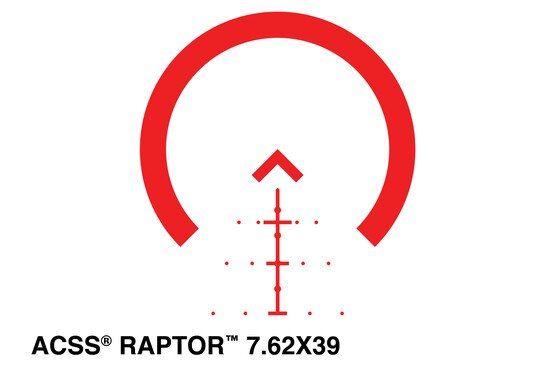

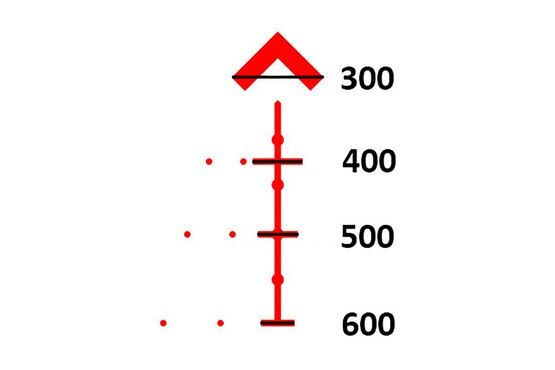

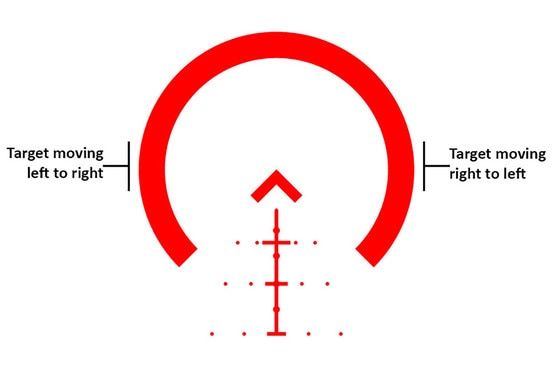

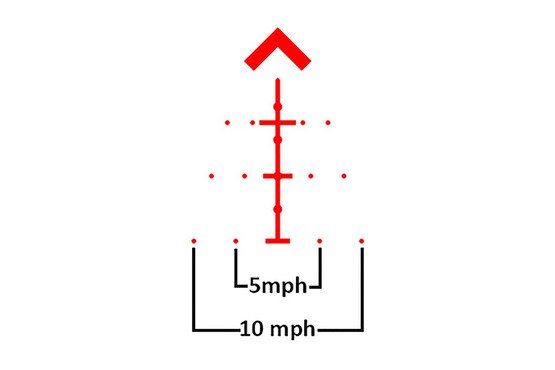

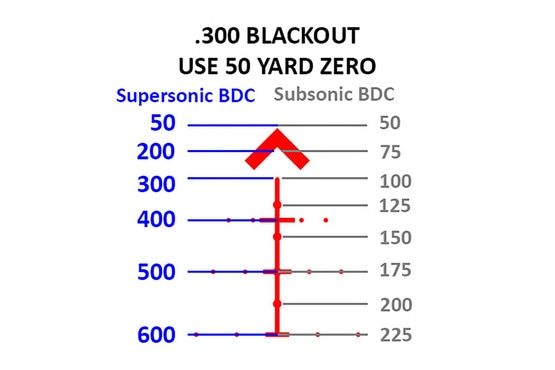

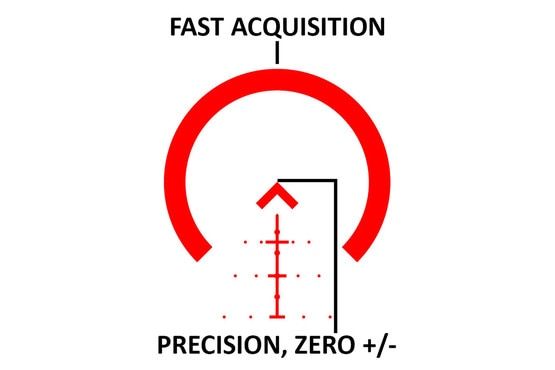

The ACSS Raptor 300BO /  7.62 first focal plane reticle has been calibrated to be true at every magnification. The reticle's features include automatic ranging out to 600 yards, moving target leads, and a large, fast horse shoe that easily draws your eye to the target. This caliber specific reticle is tuned for 7.62x39mm and 300BLK. Full red reticle illumination is provided by a single (included) CR2032 battery, and a spare battery is included inside the windage turret cap. A total of 11 settings take the reticle all the way up to daylight bright. All lenses are fully multicoated for maximum light transmission and the 6063 aluminum body is Type II hard anodized in matte black.
See More


Battery TypeCR2032 3V Lithium Coin
BrandPrimary Arms
Click Value1/4 MOA
Exit Pupil DiameterLow: 9.00mm / High: 4.00mm
Eye ReliefLow: 4.30 in / High: 4.00 in
Field View 100Low: 110.00 ft / High: 19.80 ft
Focal PlaneFirst Focal Plane
Length10.6 in
Magnification1X - 6X
Night Vision CompatibleNon-Compatible
Objective Diameter24mm
ReticleACSS RAPTOR 7.62x39/300AAC
Reticle TypeBDC
Total Elevation Adjustment50 MOA
Total Windage Adjustment50 MOA
Tube Diameter30mm
Weight17.6 Oz
  • Rex Reviews puts 1-6x ACSS Raptor to the test
  • MrGunsNGear full Raptor review and reticle walkthrough
  • Dimitri Mikroulis explains the Raptor FFP reticle
  • Garand Thumb reviews the 1-6x FFP Raptor
  • 704 Tactical shows Raptor’s capabilities in 300BLK
  • Budget Optic Torture Test (Primary Arms Raptor 1-6x)

WARNING: This Product can expose you to chemicals which is known to state of California to cause Cancer and Reproductive Harm. For more information, see www.p65warnings.ca.gov

Ratings & Reviews

13 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Raptor FFP

by -

Fits on my arsenal SLR107 and the eye relief is perfect. Calibrated it to my eye and it looks great. Awesome buy.



Mounted on my POF Revolution 308. Glass is clear the turrets are tight the Chevron makes it everything I expected and more. Great Job as usual Primary Arms.


by -

Love it well worth the money. Don’t think about it just buy u won’t you regret it at all . Thanks primary arms #7.62x39

But this


Awesome. Buy this for your 300 Blackout. I was skeptical, but after using my AR for hunting in quick acquisition targets ,such as Ferrell hogs I am a believer. Works very well as a scope for distance and almost like a red dot (field of view) for close moving targets.

Great scope!


Mounted on an 8.5" 300BO. Using subsonic 208gr AMAX, sighted in at 50 yards, went to 100 yards, right on, and finally, 200 yards. I was able to hit an 8" plate at 200 yards, although this load is not designed for that. Outstanding reticle.

All around a great optic.


First off let me just say that I'm not a huge fan of the G2 or G3 1-6 & 1-8's but this scope is superior in every way and I like it very much. At first the reticle was hard to get used to from a bench but this reticle has definitely a solid place in the future. The only thing I would change is maybe a horseshoe instead of the chevron but nonetheless it's still good. I've compared this scope to other various ones and this one has better eye relief, FOV, trueness at 1x, clarity and pretty crisp around the edges considering the price. I put these traits above weigh, length and added magnification. I highly recommend & will definitely be buying more in the future.

Great scope for 7.62x39!

by -

Ever since I built my 7.62x39 rifle and put this on top: it has become my favorite rifle! 7.62x39 has always been fun and cheap to shoot, but I didn't realize how much of a tack driver it could be until putting this scope on that rifle. I'm ringing the tiny gong at 200 yards thanks to this little scope and shooting sub-MOA with cheap russian steel cased ammo with the optical assistance of this scope!
<br>Can't say enough good about it...It's very very clear, eye relief + FFP at 1x makes it like a red dot or holographic sight. Super quick and easy to engage close range targets quickly. it's perfect! At 6x I'm quickly and accurately engaging targets at 200+yds no sweat! If you're building a 300blk or 7.62x39: you should seriously consider this scope as your primary optic.

Hard not to be impressed for the $


Have this installed on a 7.62x39 AR-15 build. With Golden Tiger FMJ I was hitting steel plates at 200, 300, 350, 400 yards and BDC was pretty much spot on. I wouldn't call this a sniper rifle lol, but for my needs it is performing better than I expected. Really like this scope. The 6X is about ideal for this round. On a 5.56 AR I use the 1-8X version and like that scope as well, but the 6x is perfect IMO for the x39 round.

Buy it!


Badass reticle, easy zero at 50. 300blk subs and supers out to 200 yards so far. I’m very impressed, especially at the price point.

PA Raptor


I bought the grey version last year and only recently got a chance to shoot with it. I got a chance to shoot with a Vortex strike eagle, which for many this would be a competitor price wise. The glass seems nicer and at first it seemed harder to get accurate shots, at least I thought so but my group size was tighter with the chevron as opposed to the strike eagles weird cross hair. All in all I had a good experience with it and love it. Primary arms is also a great place, good people working there and good service.

Excellent option.


This is a great scope. I'm easily using it to 1MOA groups at 100yds using factory Hornady 300blk SUB-X 190gr ammo out of our 7.5" remington 700 SBR. This replaced a Vortex Crossfire II 3-9x40 which had a crooked reticle from the factory and I didn't even bother with sending in to have looked at because the PA scope had the reticle I wanted and it's actually straight. The drop compensator effectiveness varies from subsonic load to subsonic load, but every other factory subsonic round I tested has a reference point I am able to use on this reticle that is consistent. I would highly recommend this scope for any 300blk gun that is being used for hogs or the like. We haven't taken it on a hunt yet, but I have full confidence that it will get the job done no problem.

Best kept Secret in the tactical designated marksman role of the optics world

by -

I put this on a Carbine length CMMG Mutant 762x39 and it rocks! Love the donut reticule, glass is really good, optic is solid and was hitting out to 300 yds easy using the ACSS system, I liked it for all purposes at 3-4 power had no problems close up but like the fact that I can crank it to 6X when needed and time permitting.... I like it better than my ACOG... thats sayin alot for me...

Crisp, clear, accurate

by -

Purchased for my AR-Mutant build in 7.62x39. Once zeroed, the chevron tip nails the bullseyes readily and repeatedly with a crisp sight picture. Cannot wait to try the drop portion of the reticle at longer distances.
