Holosun HE507C-GR-X2 Pistol Green Dot Sight - ACSS® Vulcan™ Reticle

Manufactured by Holosun
SKU: HE507C-GR-X2-ACSS
MPN: HE507C-GR-X2-ACSS
Manufactured by Holosun
83 Reviews
$359.99

In Stock

Non-FFL orders placed before 3:30pm CST will ship same business day. Non-FFL orders placed after 3:30pm CST will be shipped the next business day. FFL orders will ship within 3 business days once transfer details are provided.

For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details

Details

Details

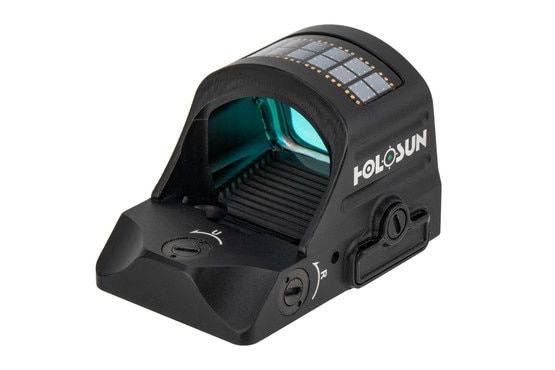

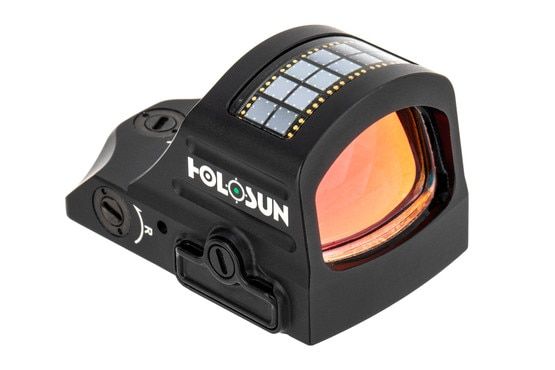

The Holosun HE507C-GR-X2-ACSS is a new generation of pistol red dot sight packed full of features like the multiple reticle system, solar failsafe, and shake awake technology to ensure your reflex sight is always operational when you need it. On top of the two battery-saving techniques, the HE507C-GR-X2 reflex sight features up to 20,000-hour battery life on setting 6 with the CR1632 battery. This battery is located in a convenient tray that slides out and allows you to easily change it without having to remove the optic from your pistol. This model features the revolutionary, patented ACSS Vulcan reticle with an outer circle. It features 7075-T6 aluminum construction with an anodized black finish and fully multicoated glass for long-term durability that is backed by Holosun's limited lifetime warranty.

The ACSS Vulcan Reticle is a revolutionary approach to reflex sights, giving the optic AutoAim™ functionality by improving user agility through a ‘heads-up’ target acquisition. Under duress, standard reflex reticles can be lost without proper sight alignment. With the ACSS Vulcan reticle, users always know the relative location of their aiming point, allowing for quick correction and improved accuracy on target.

Note: Does not include picatinny mount.

Features:

  • Great for handguns, rifles, PCCs, and shotguns
  • Solar failsafe
  • Exclusive, patented ACSS Vulcan reticle
  • Large outer reference circle can be deactivated per user preference
  • 10 MOA center chevron
  • 2 Reticle modes
  • Shake awake technology
  • Green LED
  • Multicoated glass
  • 7075-T6 aluminum construction
  • Black hardcoat anodized
  • Convenient battery tray
  • Up to 20,000-hour battery life
  • Powered by (1) CR1632 Li Ion Battery
  • Holosun Limited Lifetime Warranty

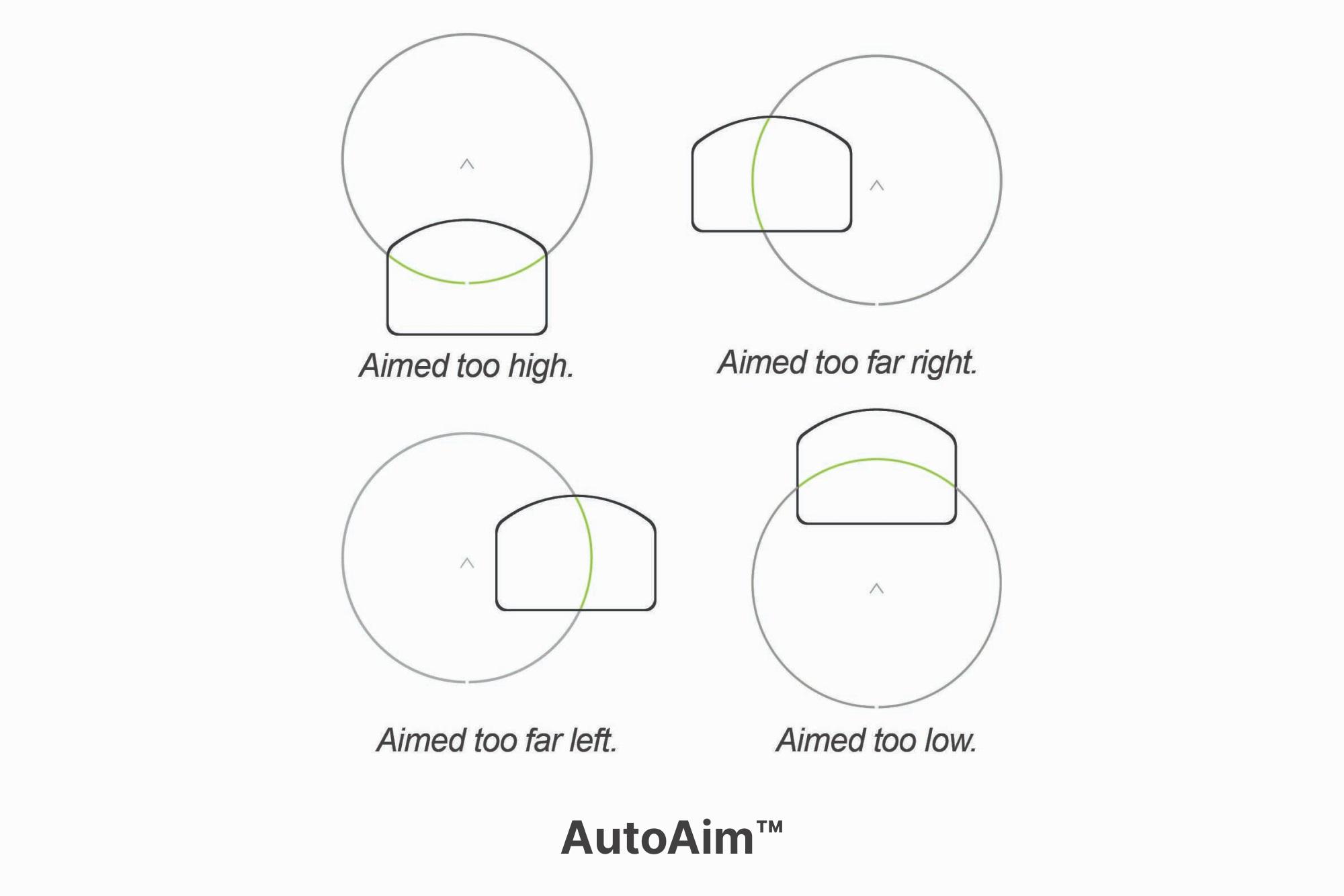

The revolutionary patented ACSS Vulcan reticle provides a large circle guiding the eyes towards the 10 MOA center chevron, eliminating one of the biggest challenges for shooters new to slide-mounted red dots. If you are off-center, a portion of this outer circle will appear in the window to give you an instant reference on how to get centered. The circle phases out of the sight window completely when the center chevron is properly aligned in the sight window. This patented reticle function significantly improves sight acquisition. It takes the common frustration of hunting for the center reticle out of the equation. Don't need the circle? It can be easily deactivated to extend the battery even further.

Holosun Technologies is committed to creating innovative optic, laser/IR technologies for a broad range of shooting, hunting, law enforcement, and military needs. Using quality manufacturing standards, they provide military-grade optics without the military-grade price.

See More
HE507C-GR-X2-ACSS MANUAL 1
HE507C-GR-X2-ACSS MANUAL 2

Specifications

Battery Life10,001 - 25,000 Hours
Battery TypeCR1632 3V Lithium Coin
BrandHolosun
Brightness12 Settings
Click Value1 MOA
ColorBlack
Emitter TypeOpen Emitter
FinishHardcoat Anodized
Manufacturer.Holosun
MaterialAluminum - 7075-T6
Mount CompatibilityHolosun 407C/507C, Trijicon RMR
Night Vision CompatibleNight Vision Compatible
Optic SeriesHolosun 507C
ReticleACSS Vulcan
Reticle ColorGreen
Warrantylimited lifetime
Weight1.5 oz.
  • Vulcan Reticle for Combat Pistols |Tactical Rifleman
California Prop 65 warning

 WARNING: This product can expose you to chemicals, which are known to the State of California to cause Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

Ratings & Reviews

83 reviews

4.8

best Holosun reticle yet

by

I am one of my department’s handgun / RDS instructors. I installed the 507C with the green Vulcan reticle on my sergeant’s new handgun, and I’m super impressed with the Vulcan reticle. I’m a long-time red dot user, and because of my astigmatism I get a slight flare around red dots (not enough to be problematic) but the green chevron was crisp without any flare around it. The concept of a pinpoint aiming point (tip of the triangle) coupled with being able to use the chevron for fast work as well by just holding center of mass, and then being able to use the chevron for holdover on more distant shots is brilliant and was why my ACOG overseas was a chevron. I am very impressed with the Vulcan reticle.

Great product, great company

by

I love the holosun optic. Very easy to see and came zeroed in. Primary Arms made the purchase simple. A+ seller, fast shipping, great product. Thank you for all your help, peace Robert

New 2024 model

by -

I like the new low profile Holosun lettering on 2024 models. This is my 3rd 507C GR X2 Vulcan from Primary Arms. Outstanding Value. All of my orders from Primary Arms have gone well and you can't beat their Customer Service and Incentives.

Great sight!

by -

I love these sights the outer ring reticle makes it much easier to locate the inner Chevron. I own three of these sights. I wish they made this sight on the smaller foot print HE507K sights.

Vulcan Reticle ROCKS

by -

I really like the Chevron version of the Vulcan reticle. The Chevron itself offers a large, easy to acquire aiming point, similar to a circle dot. This feature really stands out in rapid target engagement. It never seems as busy as circle dot, as one can easily focus on the chevron tip for a very refined sight picture.

I hear a lot of criticism that this optic is like having training wheels because off the 250 moa outer circle. I call bullshit! This optic is like having ABS brakes. If you don't need it, you won't even know that the outer ring exists. But get in some unusual shooting positions like under cars or around barricades and you'll be glad you have it!

I can't say enough good things about the design. I will admit that after two days of shooting B8s, I wish I could have switched to a dot only, but I was able to shoot the class without compromise.

I REALLY WISH THAT THIS RETICLE WAS AVAIALABLE ON SOME OF THE TITANIUM AND CLOSED EMITTER SIGHTS!!

ACSS Vulcan Reticle Green Dot Sight

by -

Easy to install with one simple tool. Central reticle sharp with right eye though doubled with left eye (?due to astigmatism). Green color very easy to spot and large outer circle really helps with aiming.

Excellent Optic

by -

Excellent optic. This is my third ACSS model: fair price, good communications, and fast shipping. Primary Arms is a great source. The ACSS is very innovative. Some influencers have said it's a "beginner" pistol-mounted optic (PMO). That's BS. I've been using PMOs since 2004, both on and off duty, and the ACSS is my favorite. There is nothing wrong with a traditional "red dot." I still have those in rotation. Still, nothing is faster than the chevron for orienting your shot, and the large circle intuitively assists you in rapid realignment when you are in an unusual shooting position, e.g., shooting behind a barricade. I have green and red ACSS models, and I'm drawn more to the green, so I chose that with this purchase. Either way, the PA ACSS is an easy and sound choice.

Great Dot Sight!

by

I put this on my XDM 9 RMR, I never used a Dot before, and this is a game changer with my prescription eyes. Great product!

What an optic

by

Love it, another banger from Holosun. This thing fornicates. Get it. Treat yoself

green acss reticle

by -

this is my third one , first two my son obtained for me . i work with for old people and they generally have vision issues . they are good at 15 foot target but at 21 ft to 45 ft you need a sharp front iron sight.they have cataracts, trifocals ,progressive lenses, forget their reading glasses. picking up sharp front sight can be problem. the outside circle helps correct how they adjust sight as first timers overcompensate moving sight and you can pick up chevron with fast with out reading glasses. i am old also
