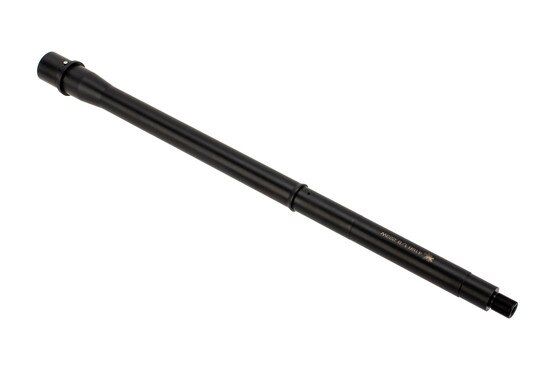

Griffin Armament HEDP .223 Wylde AR-15 Barrel - 16.1"

Manufactured by Griffin Armament
SKU: HE161223W
MPN: HE161223W
Manufactured by Griffin Armament
(0) No Reviews yet
No Longer Available
For individual Officer, First Responder, and Military pricing please make sure you are logged in. for details



The Griffin Armament HEDP (High Endurance Dual Purpose) AR-15 barrels are built for long lasting precision. Each barrel is precision machined from 416R stainless steel and Nitride coated. Featuring hand lapped bores for enhanced precision with 300 Blackout. The 1/2x28 threads are precision cut to ensure concentricity when mounting suppressors and the threads are slotted for pinning and welding a muzzle device. The gas port has been carefully engineered to provide optimal reliability whether suppressed or unsuppressed. This AR-15 barrel features a carbine-length gas system and medium diameter for rigidity and steps to a thinner diameter after the gas block to reduce weight and improve maneuverability. Polished feed ramps, magnetic particle inspection, air gauged and hand lapping set this barrel apart from the competition.

  • 16.1” chambered in .223 Wylde
  • 416R stainless steel and Nitride coated
  • Pistol length gas system
  • Optimally sized gas port for suppressor use
  • 1/8 twist rate
  • Precision cut 1/2x28 threads
  • Includes Primo low profile gas block and hardware
  • Dimpled for gas block install
  • Polished feed ramps
  • Hand lapped and air gauged bore
  • Button rifled
  • Magnetic particle inspected

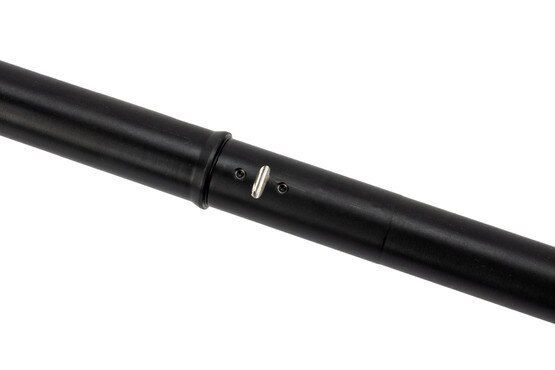

Also included with this 16.1” barrel is the Griffin Armament Primo 416R low profile gas block as well as the hardware needed to mount it. This gas block also features Nitride coating and is drilled for pinning and welding to the barrel.

Griffin Armament produces serious use products with exceptional quality at a fantastic value. Designed with real world experience and built in the U.S.A., their product line has the parts you need. They're built to last a lifetime and backed by their perpetual lifetime warranty.
See More


Barrel CoatingSalt Bath Nitride
Barrel ContourMedium
Barrel Length16.1
Barrel LiningSalt Bath Nitride
Barrel Material416R Stainless Steel
BrandGriffin Armament
Caliber Gauge.223 Wylde
Gas Seat Diameter.750
Gas System LengthMid-Length
Thread Pattern1/2 X 28
Twist Rate1:8
